Gigabyte ga-b250m-d3h motherboard does not display when powered on

Gigabyte ga-b250m-d3h motherboard does not display when it is turned on, vccsa VCC is not normal, replace Short circuit Capacitor, boot normally.

Gigabyte ga-b250m-d3h motherboard does not display when powered on

Motherboard model: Gigabyte ga-b250m-d3h motherboard
Fault phenomenon: the main board does not display when it is turned on
Maintenance process:

A gigabyte ga-b250m-d3h motherboard, the fault is that the motherboard does not display when it is turned on.No Short circuit at 12V,switch after direct power on.
The memory of 1.2V VCC is normal.

Gigabyte ga-b250m-d3h motherboard does not display when powered on

Gigabyte ga-b250m-d3h motherboard does not display figure 1.

The memory of 2.5V VCC is normal.

Gigabyte ga-b250m-d3h motherboard does not display when powered on

Gigabyte ga-b250m-d3h motherboard does not display figure 2.

The bridge VCC 1.0V was normal.

Gigabyte ga-b250m-d3h motherboard does not display when powered on

Gigabyte ga-b250m-d3h motherboard does not display figure 3.

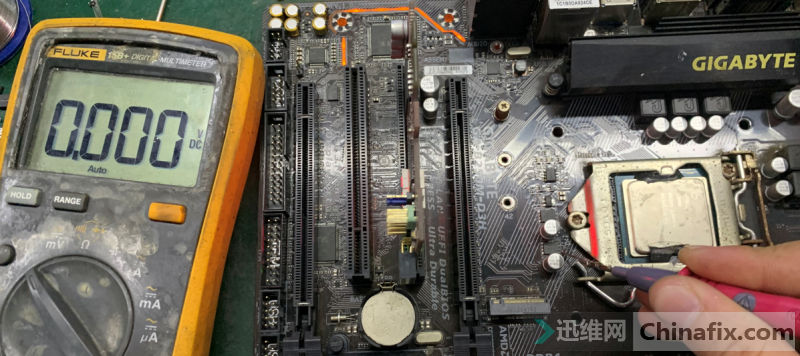

Vccsa VCC was abnormal.

246;IMG_259

Gigabyte ga-b250m-d3h motherboard does not display figure 4.

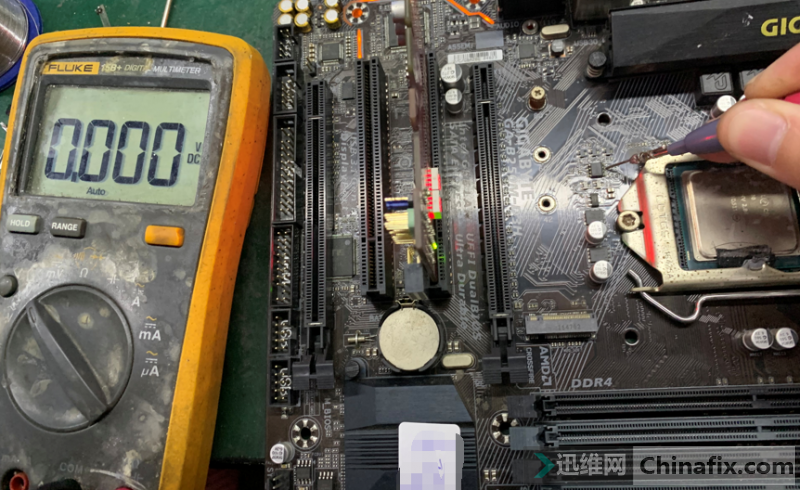

Look at the drawing for 358 control, 358 of the third pin for low level.

273;IMG_260

Gigabyte ga-b250m-d3h motherboard does not display figure 5.

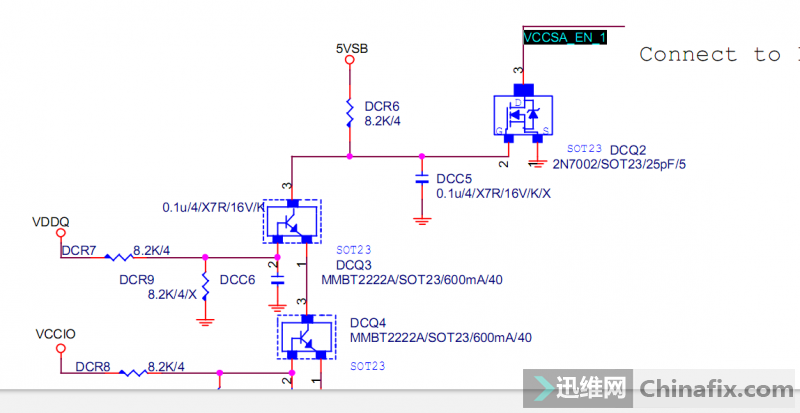

Trace the en signal from dqc2 field pipe.

293;IMG_261

Gigabyte ga-b250m-d3h motherboard does not display figure 6.

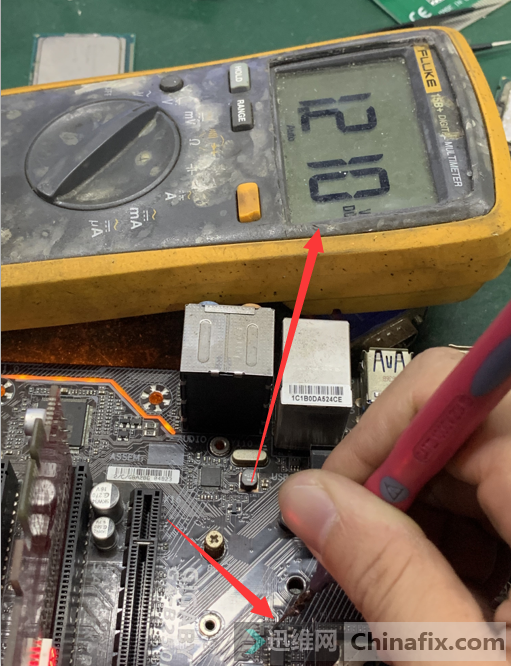

Dqc3 field transistor B pole 1.2V is normal.

314;IMG_262

Gigabyte ga-b250m-d3h motherboard does not display figure 7.

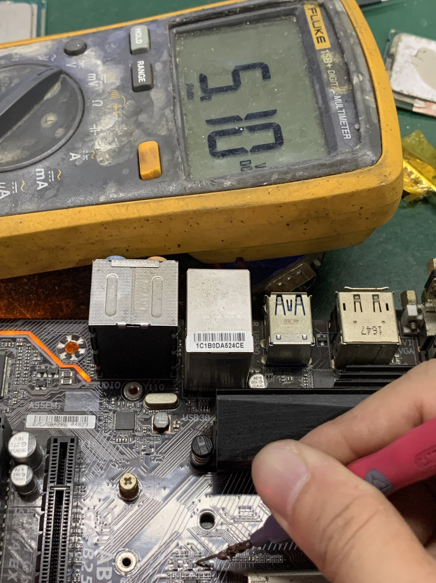

Measure dqc3 field tube C pole 5V, abnormal.

335;IMG_263

Gigabyte ga-b250m-d3h motherboard does not display figure 8.

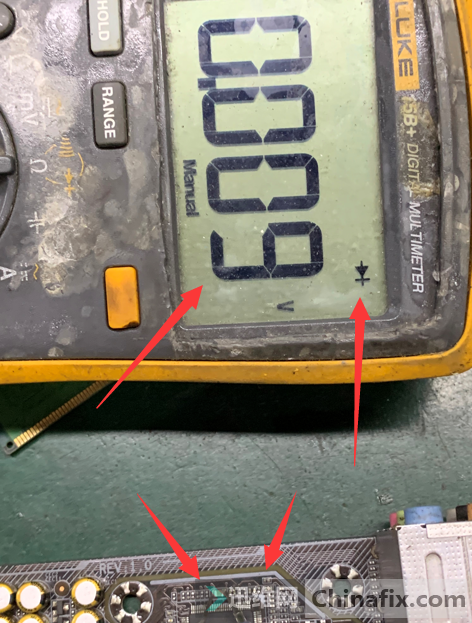

The dqc2 field tube was directly removed, but there was still no VCC. It was found that the 2.5level VCC was not generated by measuring the partial voltage resistance.Trace from Io chip,diode value is 0,Capacitor,Short circuit.

401;IMG_264

Gigabyte ga-b250m-d3h motherboard does not display figure 9.

402;IMG_265

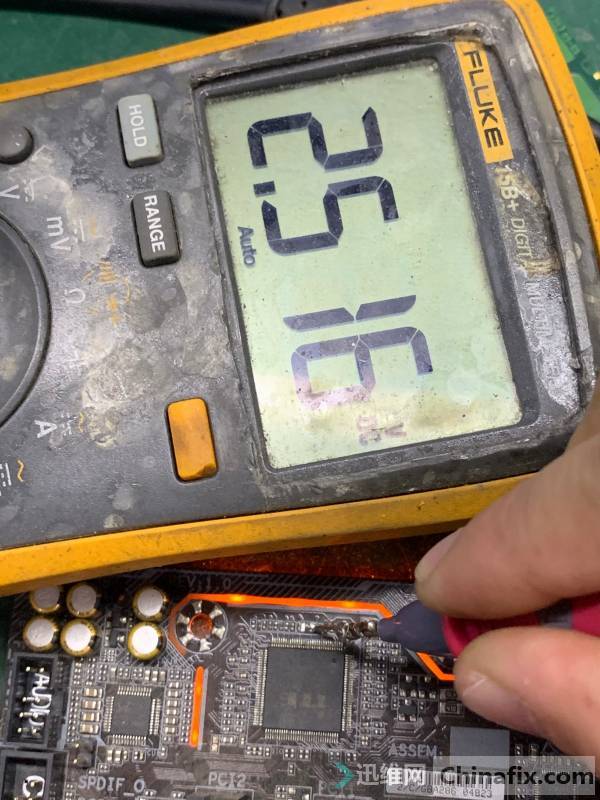

Gigabyte ga-b250m-d3h motherboard does not display figure 10.

403;IMG_266

Gigabyte ga-b250m-d3h motherboard does not display figure 11.

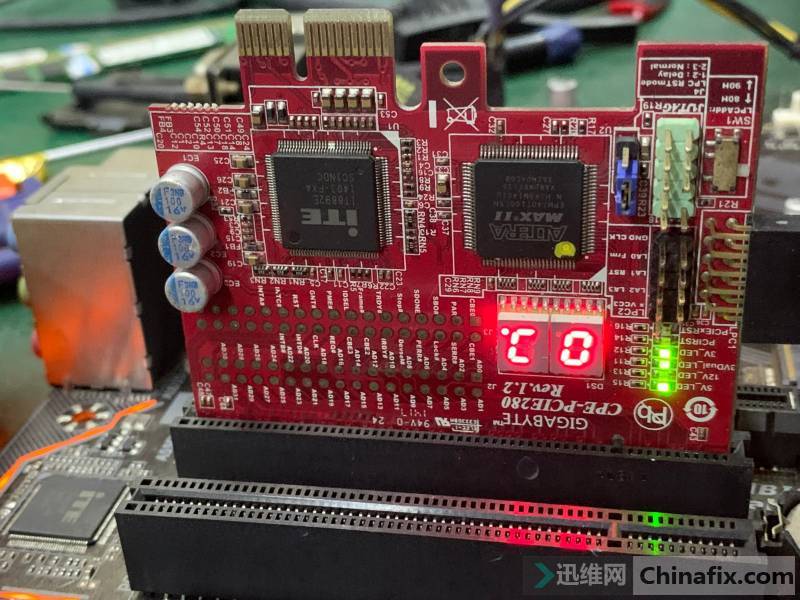

After removing Capacitor, the mainboard was repaired.

417;IMG_267

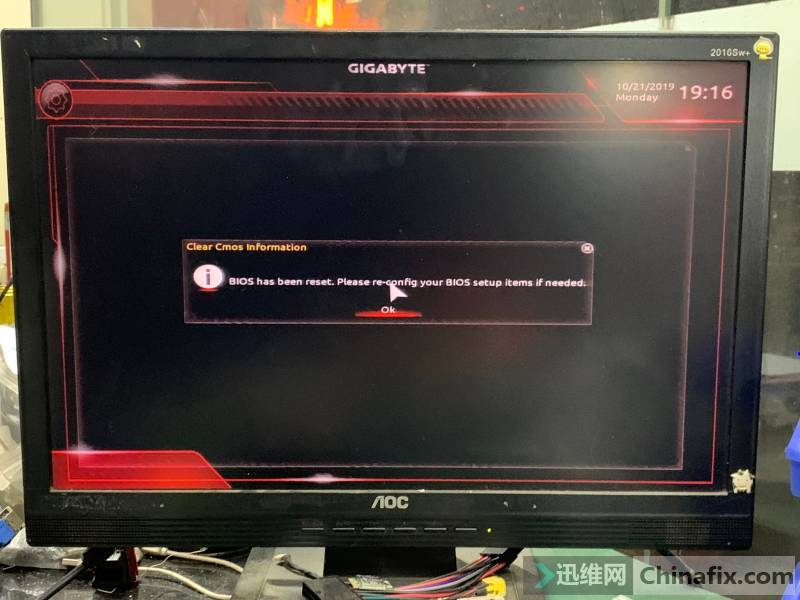

Gigabyte ga-b250m-d3h motherboard does not display figure 12.

418;IMG_268

Gigabyte ga-b250m-d3h motherboard does not display figure 13.
