Machine model: Dylan R9 370 international version 2G 1024sp

Fault phenomenon: there is no VCC in the whole card

Maintenance process: take a look at the machine, visual inspection no drop, next found no display on the machine, habitually test each VCC.

Dylan R9 370 international 2G 1024sp full card without VCC repair.

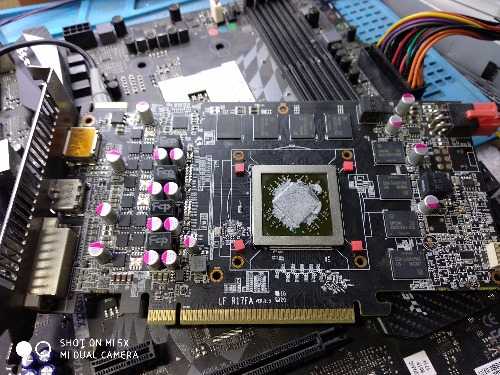

Dylan R9 370 international 2G 1024sp full card without VCC repair Figure 1.

Dylan R9 370 international 2G 1024sp full card without VCC repair.

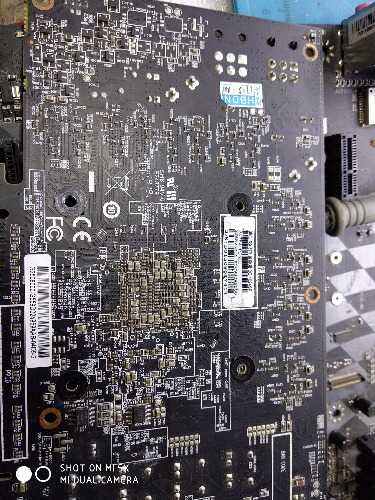

Dylan R9 370 international 2G 1024sp full card without VCC repair Figure 2.

It is found that the core video memory PCI e VDD 3.3 to 1.05v, and the initial VCC is 0. According to the R9 series a card VCC sequence should be PCI e gold finger 3.3V, after converting IC to 1.05v core, initializing VCC→ core sending pwrok, starting ncp5395t main VCC→ then video memory 1.5V → finally PCIe VDD.
Dylan R9 370 international 2G 1024sp full card without VCC repair.

Dylan R9 370 international 2G 1024sp full card without VCC repair Figure 3.

Finally, replace the 3.3V to 1.05v chip, power on booting up, and the maintenance is over!

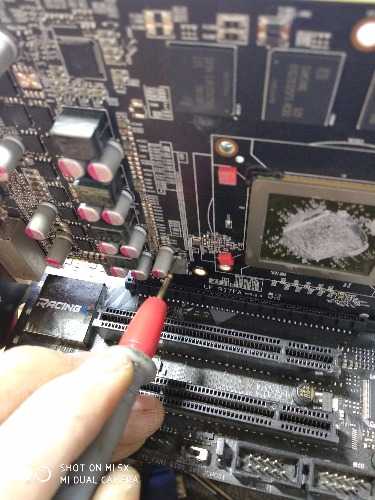

424;IMG_259

Dylan R9 370 international 2G 1024sp full card without VCC repair Figure 4.

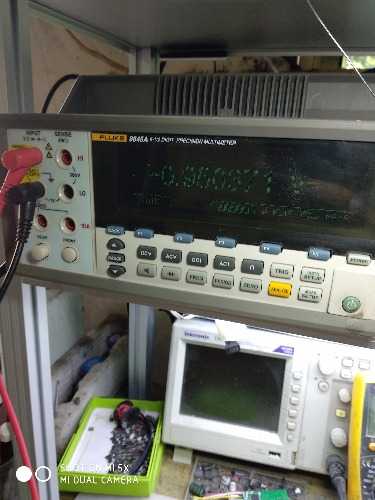

458;IMG_260

Dylan R9 370 international 2G 1024sp full card without VCC repair Figure 5.
