Dell LA-9981P laptop cannot be powered on for repair

Dell LA-9981P laptop can't be turned on. It was originally caused by a damaged resistor. The fault was repaired after replacement.

Dell lA-9981P laptop cannot be powered on for repair

Machine model: Dell LA-9981P

Malfunction: Notebook Won’t Turn On

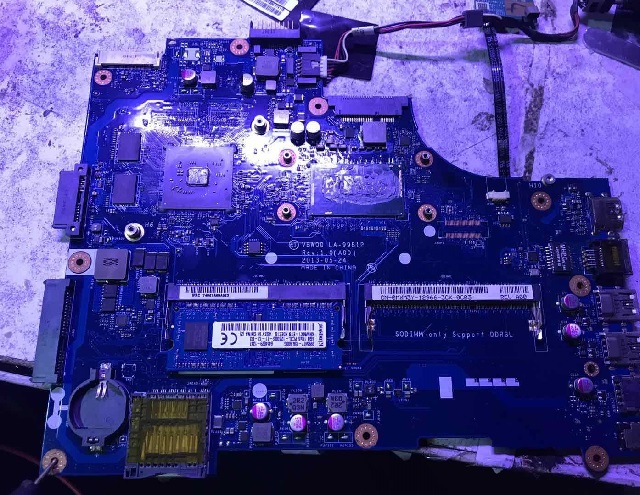

Maintenance process: take the battery Connect the power supply source 0.003 Switch without response no power on.

Dell lA-9981P laptop cannot be powered on for repair

Dell LA-9981P laptop cannot be powered on for repair Figure 1.

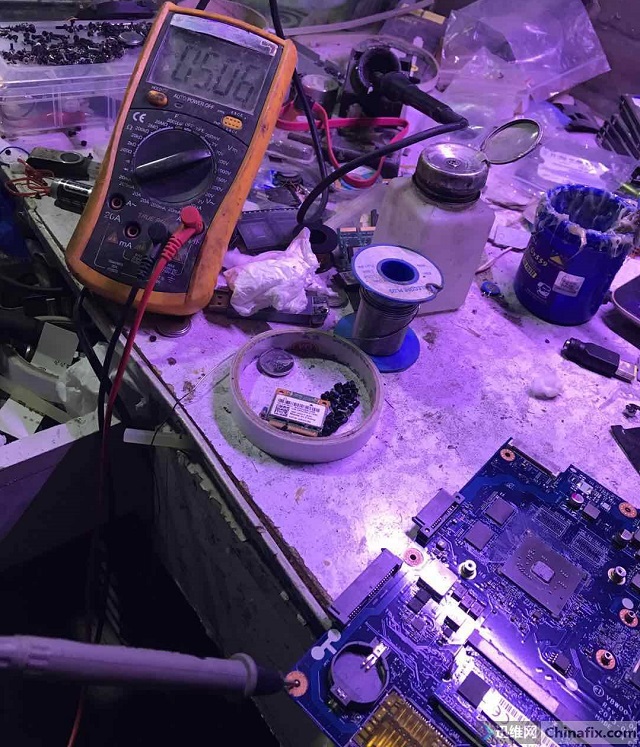

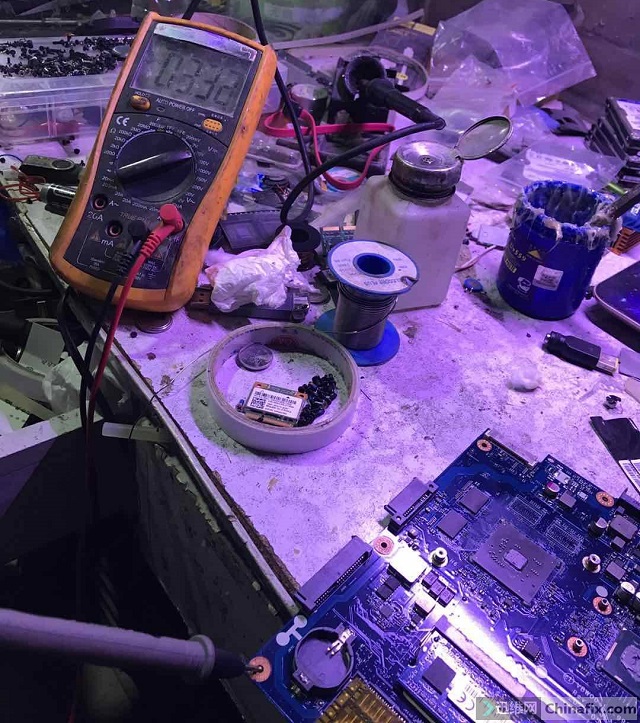

I’m afraid the CPU will hang up. Let’s see if standby 3V5V exists first.

Dell lA-9981P laptop cannot be powered on for repair

Dell LA-9981P laptop cannot be powered on for repair Figure 2.

Dell lA-9981P laptop cannot be powered on for repair

Dell LA-9981P laptop cannot be powered on for repair Figure 3.

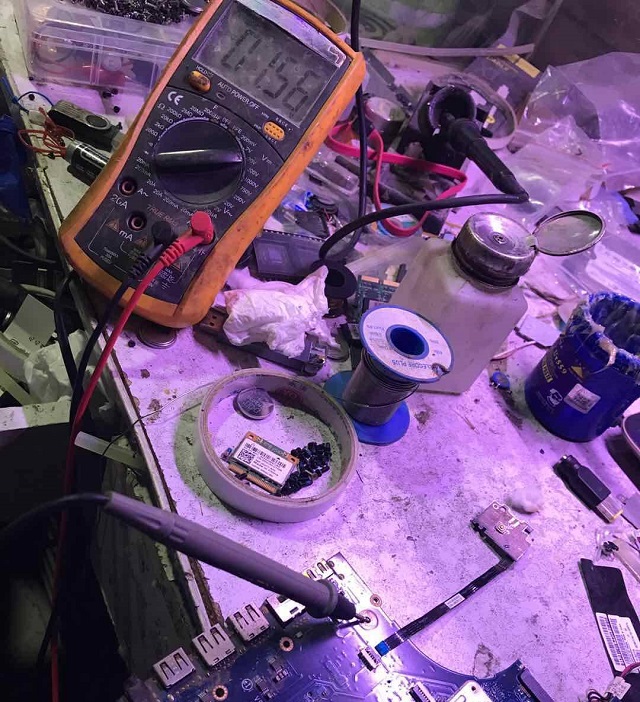

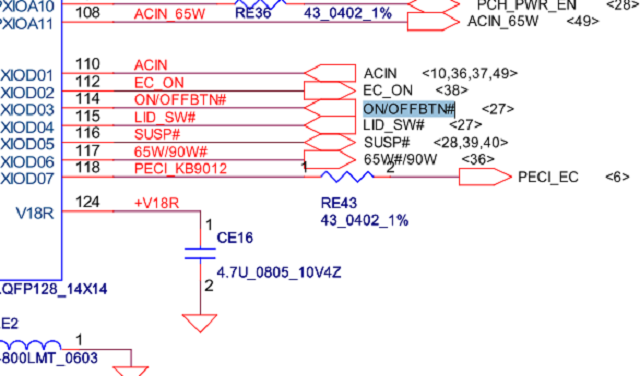

Since 3V5V depends on the EC conditions, because it is a single CPU, we should look at EC first. Open the drawing and find Switch into EC 114 pin. The measurement is only 1.5V. How can it be only 1.5 V?

294;IMG_259

Dell LA-9981P laptop cannot be powered on for repair Figure 4.

321;IMG_260

Dell LA-9981P laptop cannot be powered on for repair Figure 5.

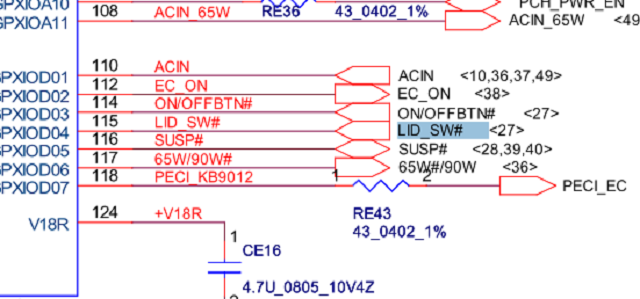

Switch has obvious current of change, so let’s leave it alone, and see if the adapter detection and LID at the back are normal. It is found that the measurement adapter is 3.3, and the LID is only 1.5V That should be the problem!

418;IMG_261

Dell LA-9981P laptop cannot be powered on for repair Figure 6.

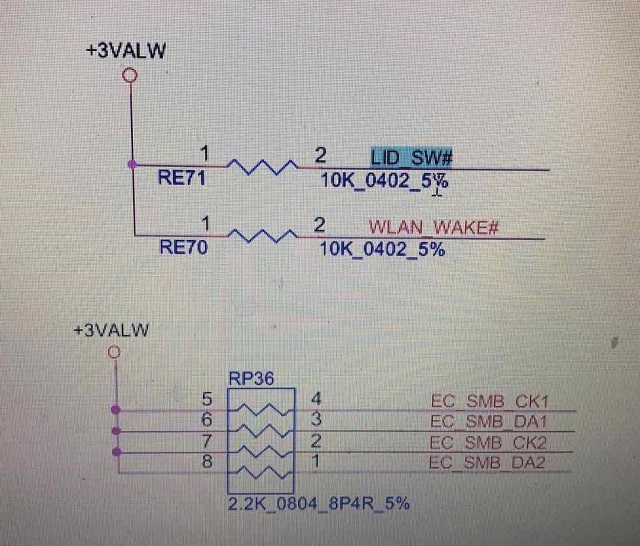

Seeing that it is connected with a 10K resistor, the drawing shows that it is a 10k pull-up resistor, and the measurement result is 3.3 on one side and 1.5 on the other, so the problem should be on this resistor.

506;IMG_262

Dell LA-9981P laptop cannot be powered on for repair Figure 7.

533;IMG_263

Dell LA-9981P laptop cannot be powered on for repair Figure 8.

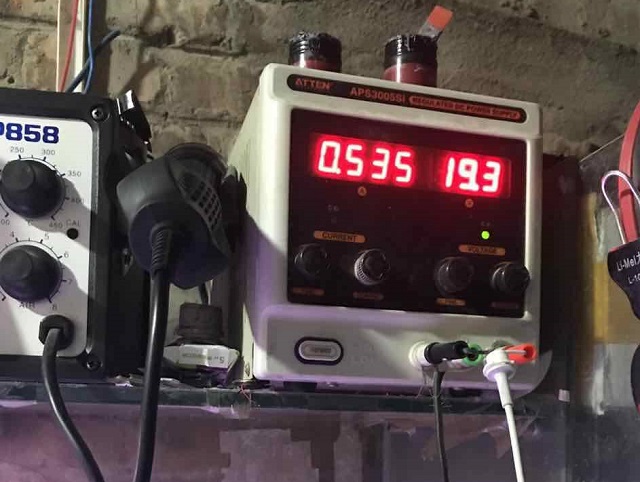

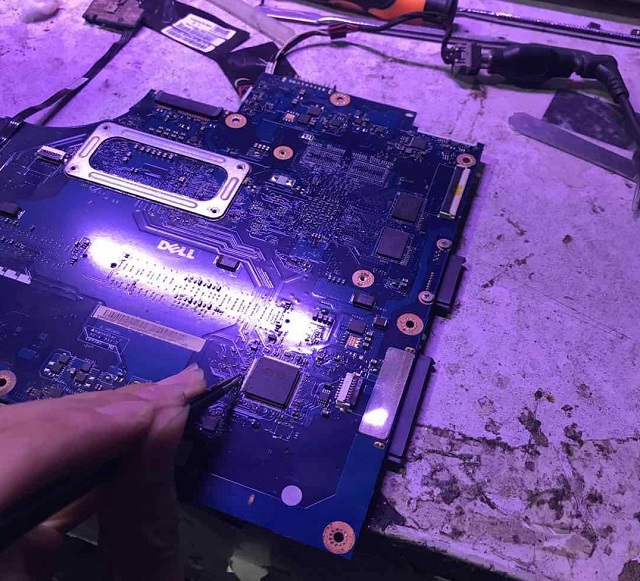

In order to test, I connected the current directly with tweezers, and it should be that this resistor is damaged.

593;IMG_264

Dell LA-9981P laptop cannot be powered on for repair Figure 9.

620;IMG_265

Dell LA-9981P laptop cannot be powered on for repair Figure 10.

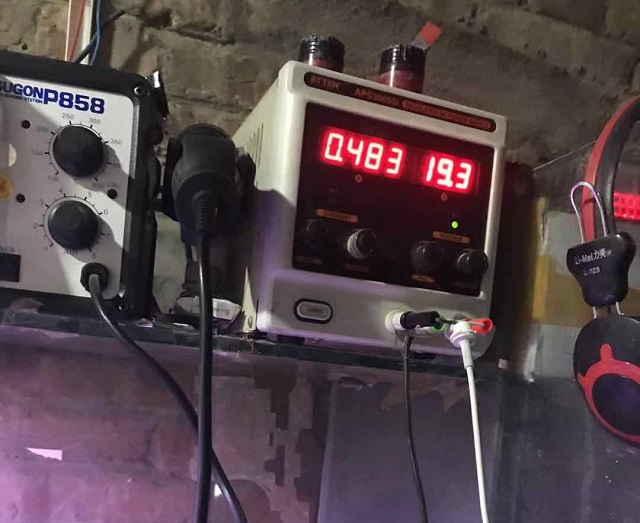

switch won’t be powered on after replacement. Unplug the memory, power it on, and then look at it and find that the current runs to 0.4, which proves that the memory has started to run.

694;IMG_266

Dell LA-9981P laptop cannot be powered on for repair Figure 11.

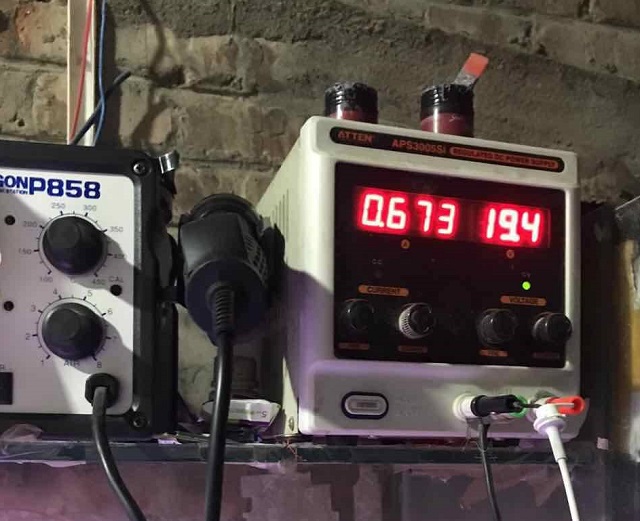

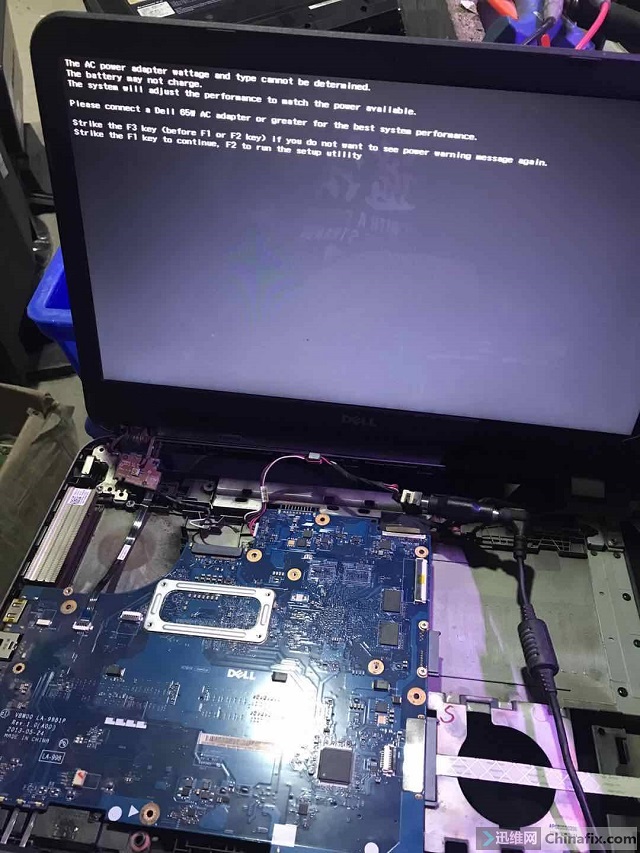

It’s okay to test the motherboard VCC again. I think I didn’t read the program. I decisively downloaded a BIOS from the forum. After brushing it, the current has obvious current of change. Connect the screen line booting up, and the maintenance is over.

787;IMG_267

Dell LA-9981P laptop cannot be powered on for repair Figure 12.

815;IMG_268

Dell LA-9981P laptop cannot be powered on for repair Figure 13.
