Dell G3 3579 laptop maintenance without charging

DELL G3 3579 notebook computer can't be charged. After testing, it is found that the adapter is damaged. Please fix it with another fault.

Dell G3 3579 laptop maintenance without charging

Machine model: DELL G3 3579

Malfunction: the notebook can’t be charged.

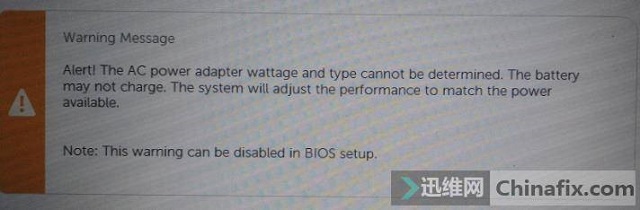

Maintenance process: Changing the power adapter still doesn’t work. Plug in the original adapter and turn it on, and a warning message appears:

warningmessage alert the ac power adabter wattage and typecannot be determined
the battery may not charge the system will adiust theperformance to math the power available

Dell G3 3579 laptop maintenance without charging

Dell G3 3579 laptop maintenance without charging Figure 1.

Dell G3 3579 laptop maintenance without charging

Dell G3 3579 laptop maintenance without charging Figure 2.

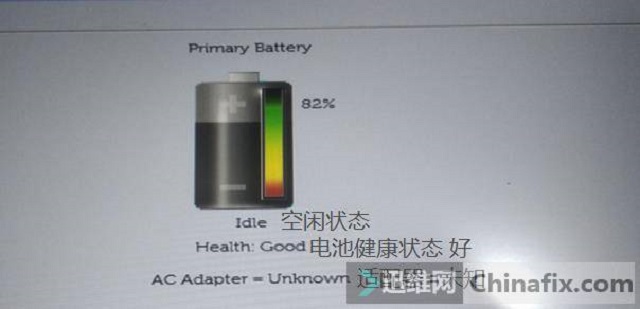

It means that you don’t recognize the power of the power supply and can’t charge it. The system adjusts the performance according to the performance and looks at the battery information in BIOS.

Dell G3 3579 laptop maintenance without charging

Dell G3 3579 laptop maintenance without charging Figure 3.

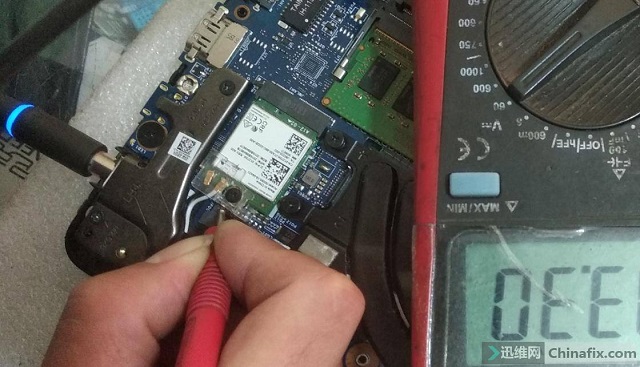

I really don’t recognize the function of the adapter and don’t charge it. If the adapter has been changed, then disassemble it and test the interface and motherboard! An electrolytic Capacitor pin is inserted into the hole in the middle of the interface, and the on-off from the middle hole to the main board interface position PJPDC1 1 pin PSID is normal, which basically eliminates the problem of the middle hole of the interface, and there is also 3.3V VCC in the power test.

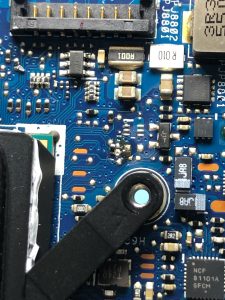

540;IMG_259

Dell G3 3579 laptop maintenance without charging Figure 4.

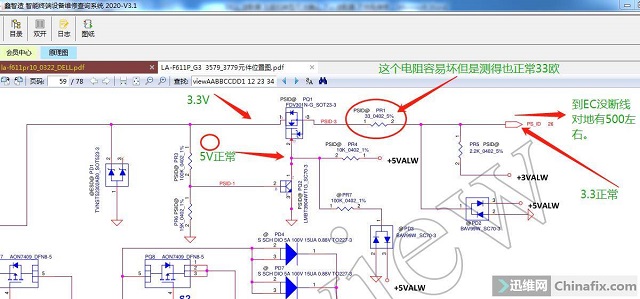

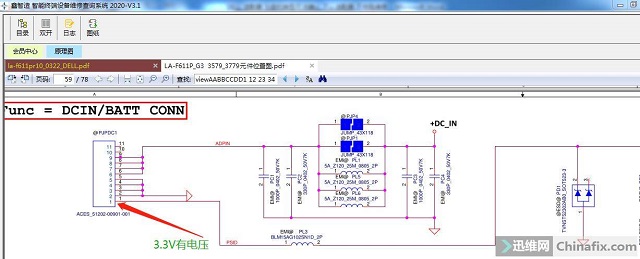

VCC has come out, but I haven’t identified it yet. I looked at drawing LA-F611P in Xinzhizao Soft.

601;IMG_260

Dell G3 3579 laptop maintenance without charging Figure 5.

Measurements are as follows:

636;IMG_261

Dell G3 3579 laptop maintenance without charging Figure 6.

It’s all normal, and it’s installed to download the latest BIOS from official website. During the update process, I saw that there was an updated EC program. After the update, it was still the same. I measured the 1 pin PSID wave of the lower PJPDC1 interface with a wave.

737;IMG_262

Dell G3 3579 laptop maintenance without charging Figure 7.

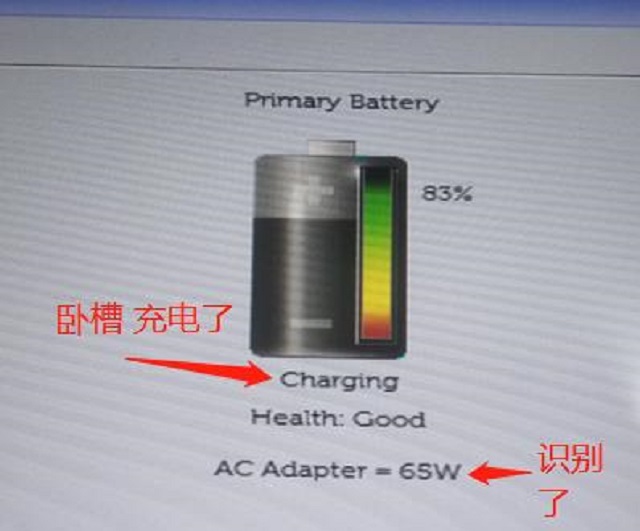

Is EC broken? EMC1416 didn’t expect it either. PS_ID will go to a few places, and it’s almost enough to check. The next day, I received another LOGO from DELL N4050, with a bag and adapter. First, remove Nand and block the LOGO, which seems to be common failing. Do it well in one hour and put it on the counter for trial operation. Then I saw G3 3579 by the counter.It’s an uncanny trick to unplug this N4050, plug it into G3 3579 and boot it into BIOS.

937;IMG_263

Dell G3 3579 laptop maintenance without charging Figure 8.

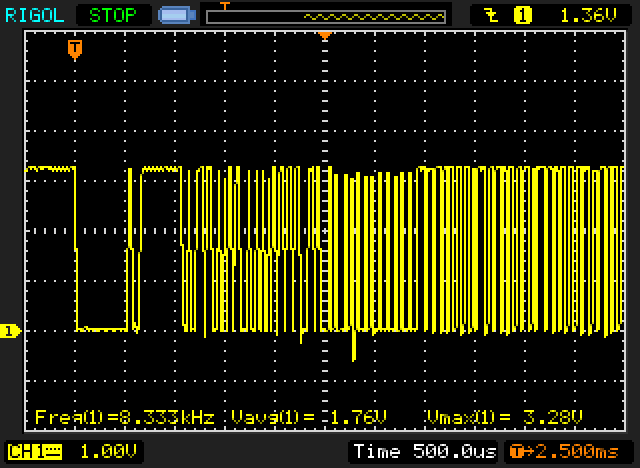

I recognized that it was also charged, and measured the 1 pin waveform of PJPDC1 with wave again.

994;IMG_264

Dell G3 3579 laptop maintenance without charging Figure 9.

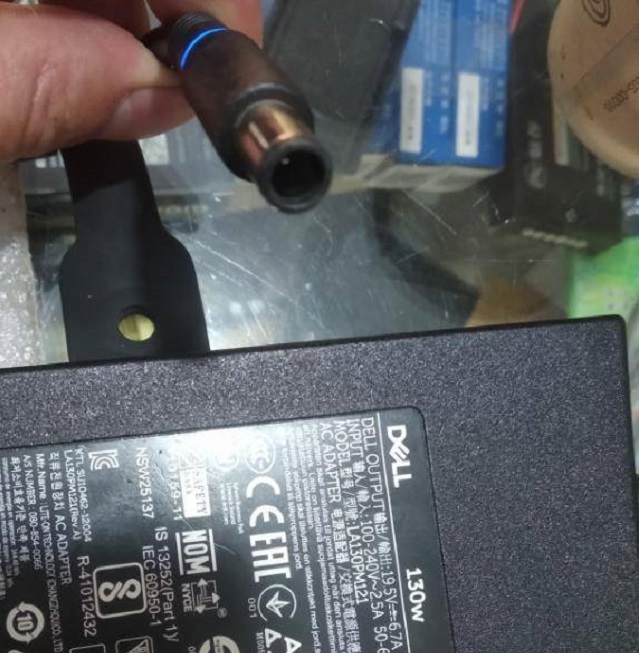

It took a long time for the adapter to break down. I found an original adapter from the market and charged it for a while. Everything was normal, and the maintenance was over.

1061;IMG_265

Dell G3 3579 laptop maintenance without charging Figure 10.
