Category Smartphone & Pad Repair Guide

Smartphone & Pad Repair Guide

Huawei Mate 30 Pro can’t connect to WiFi repair

IMG_259
WiFi chip has been repaired at home. The power supply of the WiFi chip is normal when it is turned on, so the iron case of the crystal oscillator is directly found. After disassembling it, the crystal oscillator is taken down to measure the ground value of the crystal oscillator, and it is found that the two ground wires of the crystal oscillator are dropped. Find a good 38.4MHz crystal oscillator and put the motherboard back inside the phone.

IPhone 12 Pro Max can’t start the machine for repair

IMG_258
Connect the mainboard with the power supply for repairing the machine, and the mainboard is very hot, indicating that the mainboard has a short circuit. This situation is generally caused by the breakdown of the filter capacitor, and the lower board is smoked with rosin, and then the power supply of the lower board repair machine is burned separately to lock the fault point.

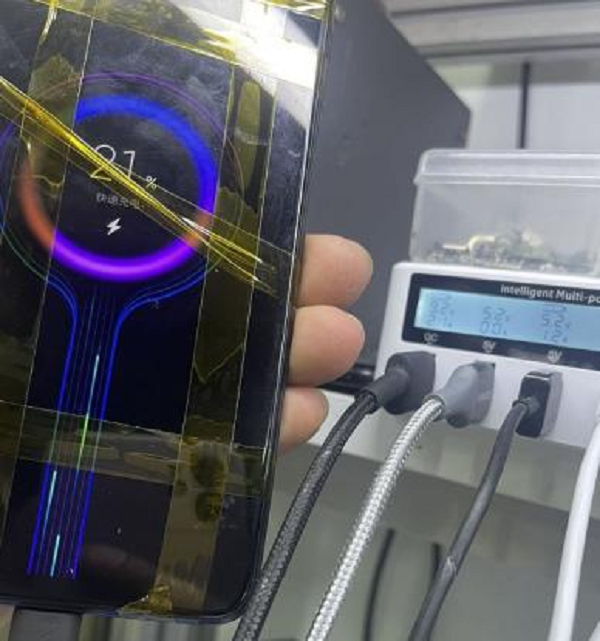

Red rice Note 9 Pro can’t be charged for repair

IMG_262
Disassemble the back shell of the mobile phone, plug in the data cable and use a multimeter to measure that the tail plug cable at the motherboard end has a 5V voltage input, indicating that the non-charging fault has nothing to do with the tail plug small board and the cable, and it can be determined that there is something wrong with the motherboard.
