ASUS x550jd notebook startup gray screen repair
Machine model: ASUS x550jd
Main board number: ASUS x550jd 2.0 independent graphics card
Fault phenomenon: gray screen of laptop boot
Maintenance process:
ASUS x550jd laptop boot gray screen, external display is normal, internal screen has bright gray screen without words.

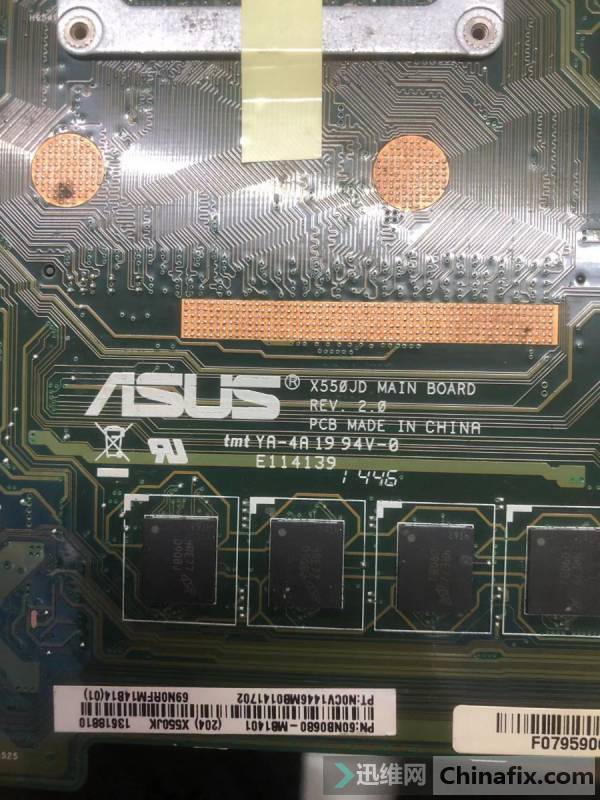

ASUS x550jd notebook startup gray screen repair Figure 1.
Check the screen signal and eliminate the problem of over and off line.Check the working conditions of u4601 and VCC, and replace the u4601 screen control chip or gray screen.ASUS x550jx motherboard, u4601 not installed can also display, through ASUS x550jx motherboard reference, modify ASUS x550jd circuit, perfect lighting repair. Modification method: remove all 8 resistors u4601, pu8701 and r4521-r4528.
ASUS x550jd notebook startup gray screen repair Figure 2 .
Remove c4525, c4526, c4527, c4528 Capacitor and r4540, r4541 resistors on the back of the screen interface. Add 6 Capacitor of c4530, c4531, c4532, c4533, c4539, c4538. Add six 0 ohm resistors to r4550 to r4555. Then move r4545 resistor to r4520, r4543 resistor to r4542. This is a good complement.
ASUS x550jd notebook startup gray screen repair Figure 3.
Test on the machine, the light is successful, the system test shows normal, troubleshooting, maintenance is over.
