ASUS h110m-k motherboard doesn’t respond when powered on

ASUS h110m-k motherboard does not respond to boot, there is no CPU VCC,short-circuit small resistance,VCC is normal,Normally booting up.

ASUS h110m-k motherboard doesn’t respond when powered on

Motherboard model: ASUS 110m-k Rev1.03

Fault phenomenon: the main board does not respond to power on

Maintenance process:

A ASUS h110m-k motherboard, the fault is that the motherboard does not respond to boot.

ASUS h110m-k motherboard doesn't respond when powered on

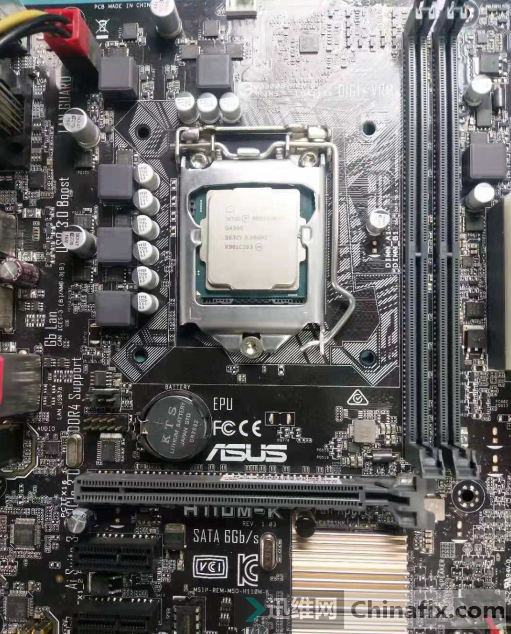

ASUS h110m-k mainboard does not respond to startup repair Figure 1.

Test memory VCC 1.2V, normal.
Test bridge VCC 1.0V, normal.
Vppddr2 was measured5V, normal.
The front end of vccsa Inductor is powered and normal.
Test CPU VCC is 0V, abnormal.

ASUS h110m-k motherboard doesn't respond when powered on

ASUS h110m-k mainboard does not respond to startup repair Figure 2.

Test CPU VCC chip asp1401b the 7th pin, only 3.3V.

ASUS h110m-k motherboard doesn't respond when powered on

ASUS h110m-k mainboard does not respond to startup repair Figure 3.

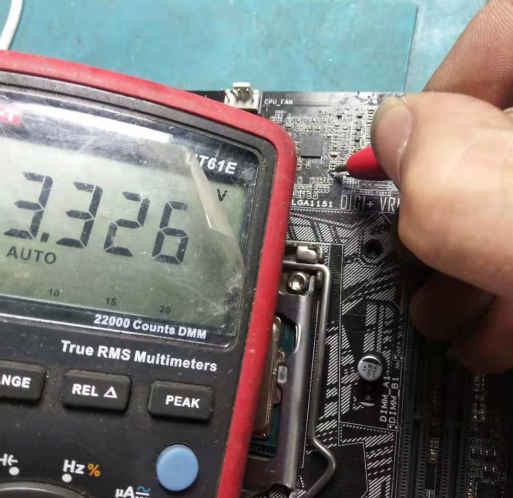

pin so open at position 433.01.

289;IMG_259

ASUS h110m-k mainboard does not respond to startup repair Figure 4.

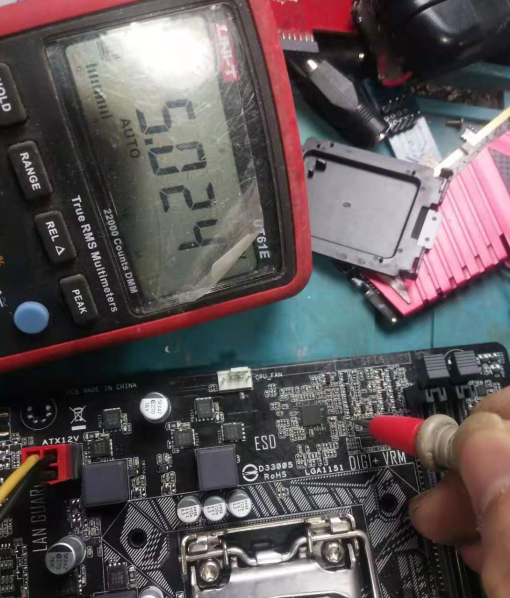

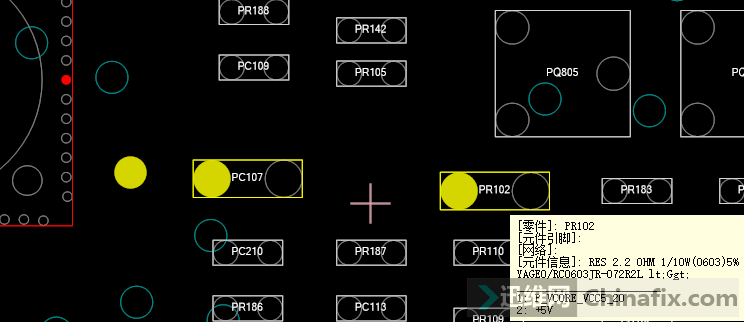

OpenXinzhizao SoftCheck Boardview, connected with a 2.2 ohm resistance, measuring one end is 3.3V, one end is 5V.

465;IMG_260

ASUS h110m-k mainboard does not respond to startup repair Figure 5.

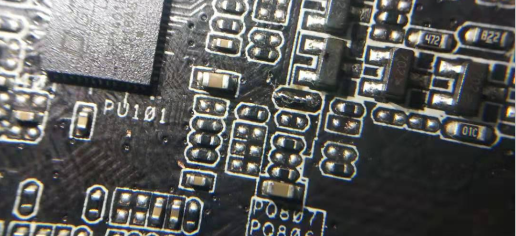

Use a lump of solder wire short-circuit.

479;IMG_261

ASUS h110m-k mainboard does not respond to startup repair Figure 6.

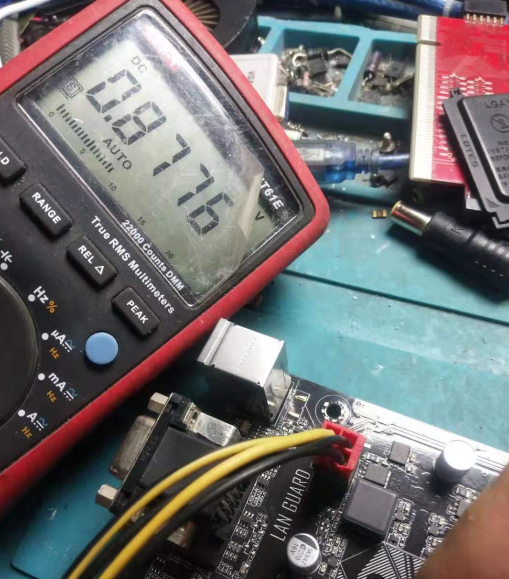

VCC and pin have 5V.The position of VCC is VCC.

507;IMG_262

ASUS h110m-k mainboard does not respond to startup repair Figure 7.

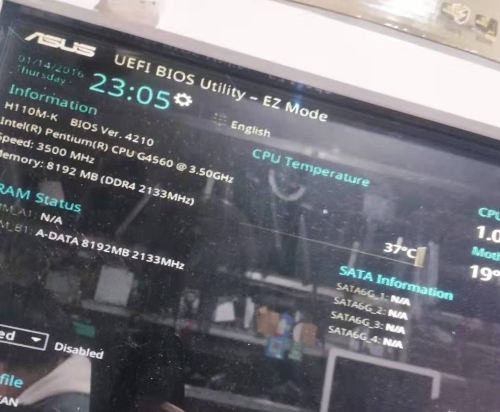

Boot test,Normally booting up, all functions are normal.
