Machine model: ASUS H110

Fault phenomenon: no voltage, no startup

Maintenance process: get the machine, measure that the CPU has no voltage, measure that PQ302 has no 1.05V, and the replacement of 358 is invalid.

According to the following figure, 358 is controlled by P8801. There is no problem with this triode, but there is no voltage on pin 3 and no high level on pin 1. Replace this PQ801.

ASUS H110 CPU voltage free repair

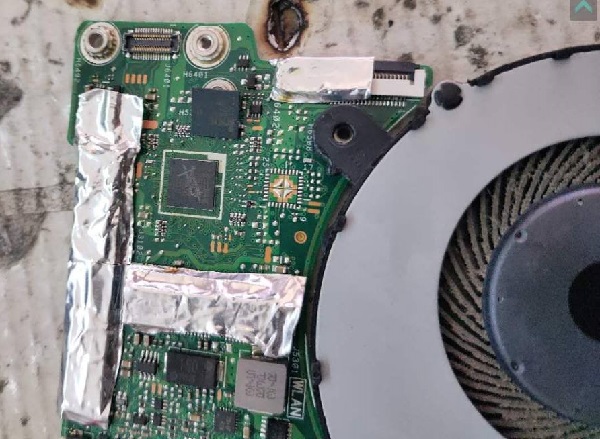

SUS H110 CPU voltage free repair Figure 1.

Output 2V from pin 3, and output CPU voltage normally.

ASUS H110 CPU voltage free repair

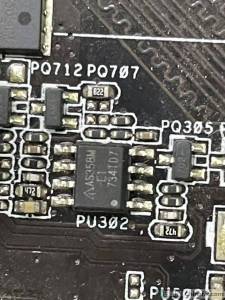

SUS H110 CPU voltage free repair Figure 2.

ASUS H110 CPU voltage free repair

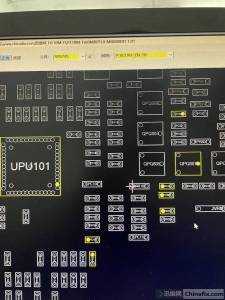

SUS H110 CPU voltage free repair Figure 3.

IMG_259

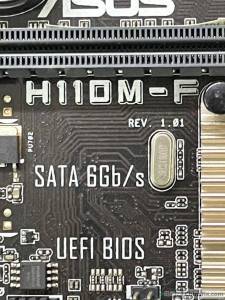

SUS H110 CPU voltage free repair Figure 4.
