ASUS GL553VD notebook with graphics card driver will be repaired with black screen

ASUS GL553VD notebook with graphics card driver will be repaired with black screen.

Test B0 channel video memory error exception. Disassemble and replace a single 512M memory chip of Magnesia. Run full load with MODS again, make sure there are no hidden faults in other video memories, run MODS test, and the test results are all PASS. When the machine is installed, the driver is automatically installed. Troubleshooting, the maintenance is over.

Machine model: ASUS GL553VD notebook

Fault phenomenon: black screen when installing graphics card driver

Maintenance process:

I received an ASUS GL553VD notebook, and the fault description notebook was black screen when the graphics card driver was installed. After testing the machine, the screen was displayed immediately, and then the screen was black.

In general, there are many problems around the graphics card, and the possibility of bad core is high. Replace N17P-G0-A1 chip, and the system failure remains the same. Load the upper driver directly, and test the channel information of the memory with ordinary MATS.U disk test software.

Asus GL553VD notebook with graphics card driver for black screen maintenance Figure 1

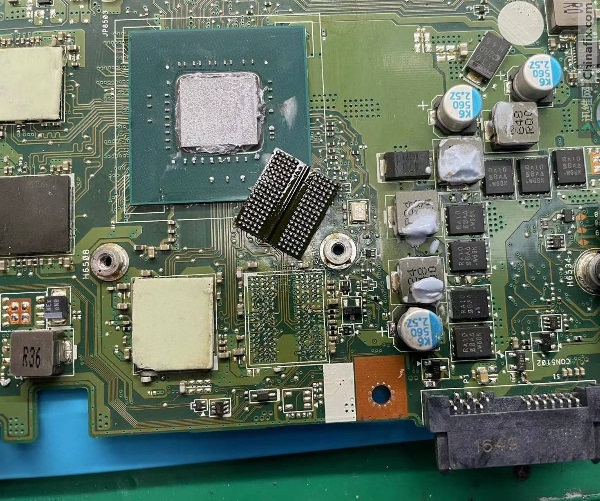

Test B0 channel video memory error exception. Disassemble and replace a single 512M memory chip of Magnesia.

Asus GL553VD notebook with graphics card driver for black screen maintenance Figure 2

After the tin is replaced, install the machine, then run the test program and PASS directly.

Asus GL553VD notebook with graphics card driver for black screen maintenance Figure 3

Run full load with MODS again to make sure there are no hidden faults in other video memories.

Asus GL553VD notebook with graphics card driver for black screen maintenance Figure 4

Run the MODS test, and all the test results PASS.

Asus GL553VD notebook with graphics card driver for black screen maintenance Figure 5

When the machine is installed, the driver is automatically installed. Troubleshooting, the maintenance is over.
