ASUS fx50jx notebook computer into the system blue screen crash, into the PE also blue screen, directly remove the plant beads, replaced with i7 CPU Parts motherboard.

Machine model: ASUS FX 50jx

Machine configuration: i5-4200h processor, 4G memory on board

Graphics card: gtx950m

Plate No.: fx550jx rev2.1

Fault phenomenon: when entering the system, the blue screen will crash, and when entering PE, it will also be blue screen

Maintenance process: flash BIOS, shield memory, bare board point fault are the same.

ASUS FX50jx laptop into PE blue screen repair

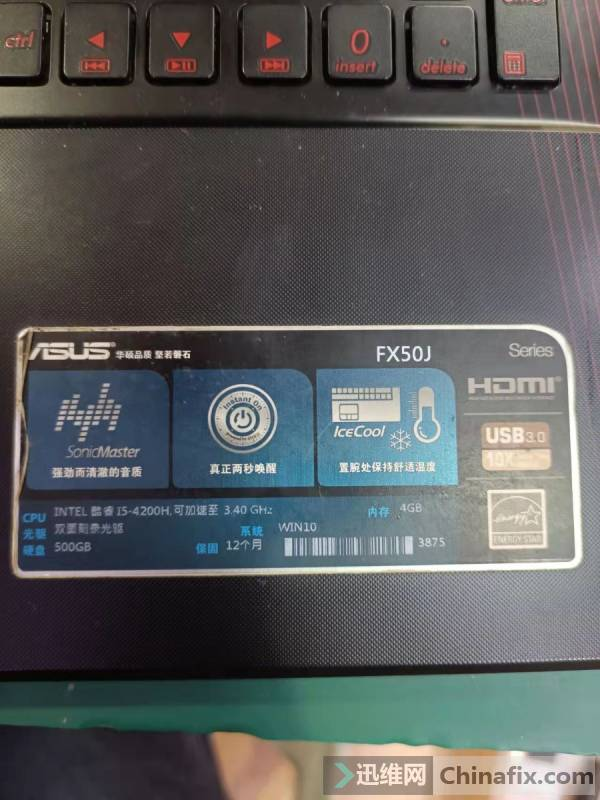

ASUS fx50jx Notebook PC into PE blue screen troubleshooting Figure 1

However, when entering the PE blue screen, there will be uneven black and white dots. After a tour of the forum, I found many such failures, but I have never tried the CPU.

ASUS FX50jx laptop into PE blue screen repair
ASUS fx50jx Notebook PC into PE blue screen troubleshooting Figure 2

迅维远程学员分享:华硕FX50JX进PE蓝屏维修 图3

ASUS fx50jx Notebook PC into PE blue screen troubleshooting Figure 3

There is an Parts motherboard in my hand, but the CPU is i7, which is not a big problem.Directly remove the plant beads and replace them, the problem is solved, and the maintenance is over!

迅维远程学员分享:华硕FX50JX进PE蓝屏维修 图4

ASUS fx50jx Notebook PC into PE blue screen troubleshooting Figure 4

393;IMG_260

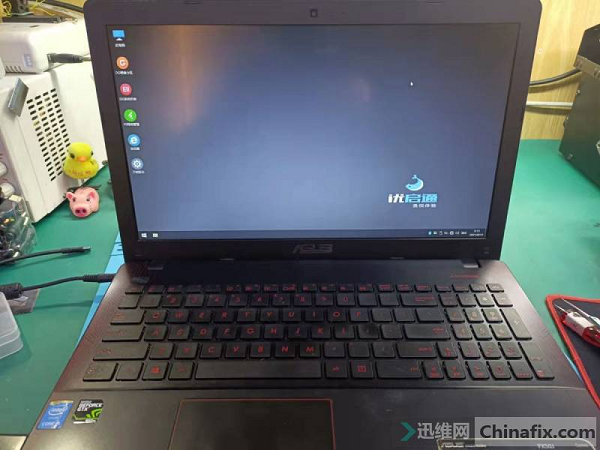

ASUS fx50jx Notebook PC into PE blue screen troubleshooting Figure 5
