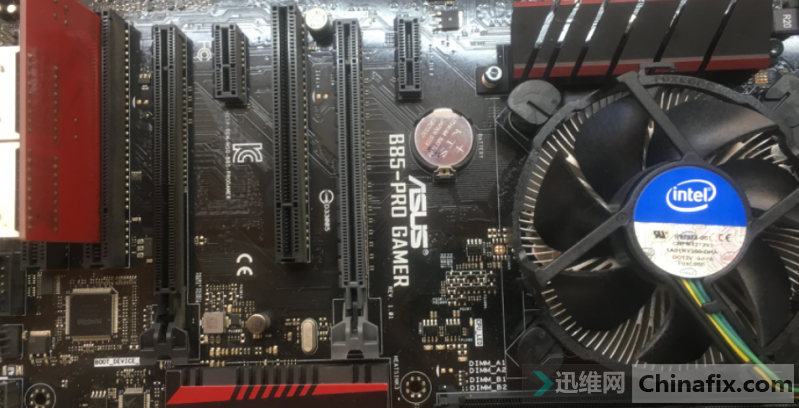

Machine model: ASUS B85-PRO-GAMER

Fault phenomenon:switch auto power off

Maintenance process: the customer said that switch auto power off was still the same after changing the power supply. After taking over the measurement of 12V, the Short circuit was not found, and the 3.3V was also OK, so it was directly powered on.

ASUS B85-PRO-GAMER triggered power failure repair

ASUS B85-PRO-GAMER triggered power failure repair Figure 1.

ASUS B85-PRO-GAMER triggered power failure repair

ASUS B85-PRO-GAMER triggered power failure repair Figure 2.

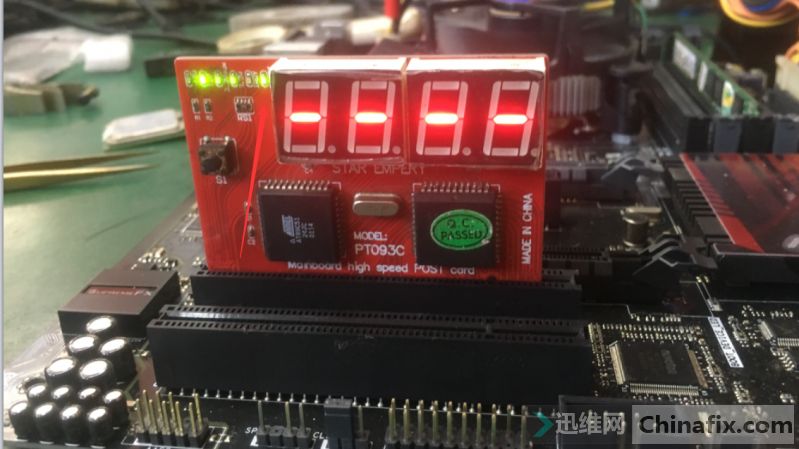

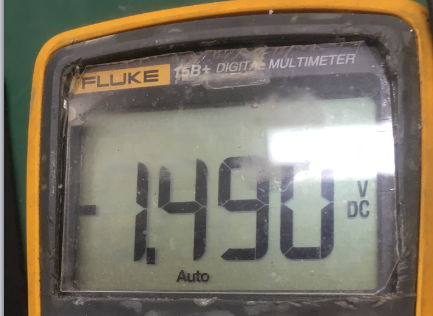

Memory VCC see the diagnostic card on reset lamp,VCC did not come out.The bridge’s + 1.05me was measured_VSB VCC and CPU VCC are not available, other VCC are normal.

ASUS B85-PRO-GAMER triggered power failure repair

ASUS B85-PRO-GAMER triggered power failure repair Figure 3.

(the board is switch auto power off, so it’s hard to catch the picture of the reset lamp on!)

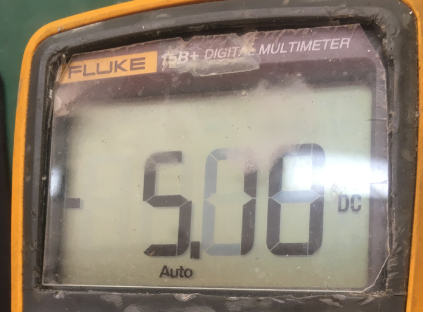

Find Boardview for + 1.05me_VSB VCC chip test,VCC 5v.

352;IMG_259

ASUS B85-PRO-GAMER triggered power failure repair Figure 4.

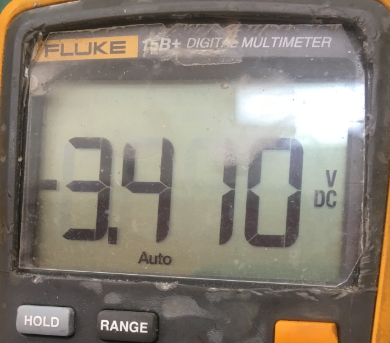

EN signal VCC 3.3V

391;IMG_260

ASUS B85-PRO-GAMER triggered power failure repair Figure 5.

Test chip two conditions are OK, frequency resistance measurement did not find the file, also directly replace the chip, the chip in Inductor next to the chip, 8 pin chip QFN packaging!!

471;IMG_261

ASUS B85-PRO-GAMER triggered power failure repair Figure 6.

The chip of VCC was replaced successfully,Mainboard maintenanceThat’s the end.

614;IMG_262

ASUS B85-PRO-GAMER triggered power failure repair Figure 7.

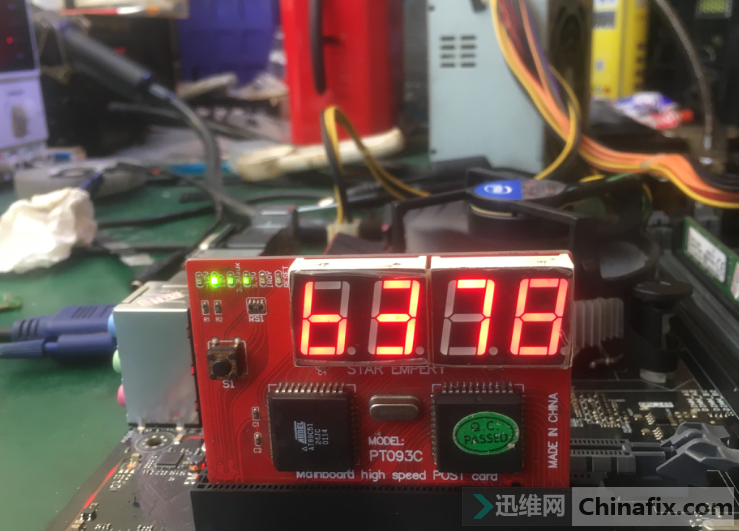

643;IMG_263

ASUS B85-PRO-GAMER triggered power failure repair Figure 8.
