ASUS AM4 b450m motherboard Won't Turn On, no CLK, no reset, replace a resistor, boot normal.

ASUS AM4 b450m motherboard cannot be powered on for repair

Motherboard model: ASUS AM4 b450M motherboard

Fault phenomenon: main board Won’t Turn On

Maintenance process:

An AM4 b450m motherboard, boot does not run code, measurement of each big VCC.

ASUS AM4 b450m motherboard cannot be powered on for repair

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 1.

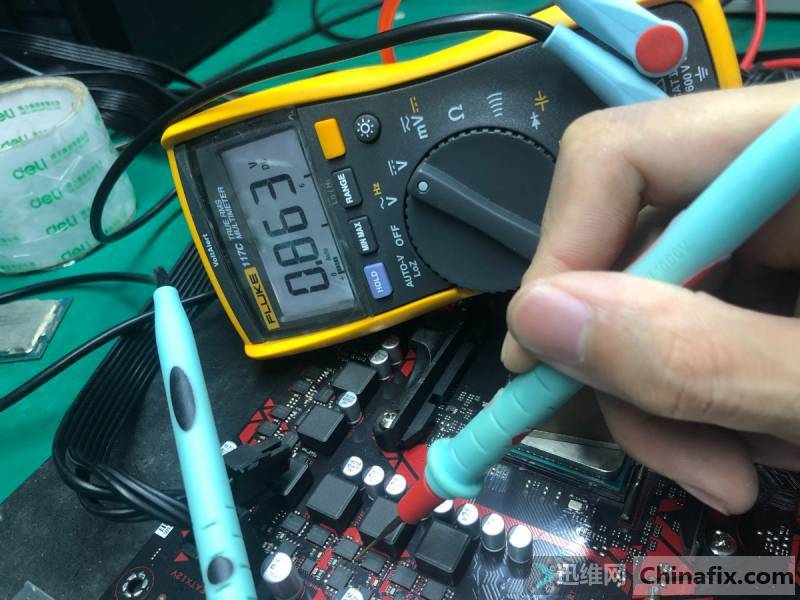

SOC VCC

ASUS AM4 b450m motherboard cannot be powered on for repair

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 2.

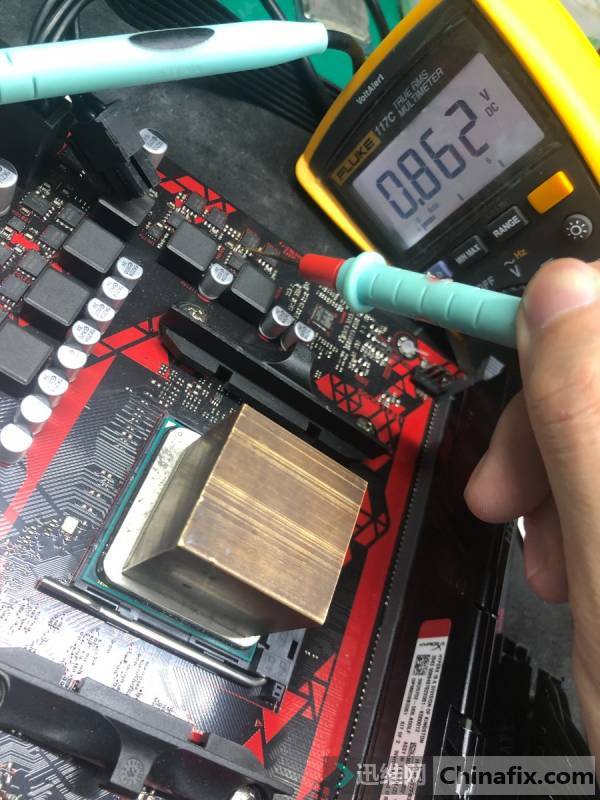

CPU VCC

ASUS AM4 b450m motherboard cannot be powered on for repair

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 3.

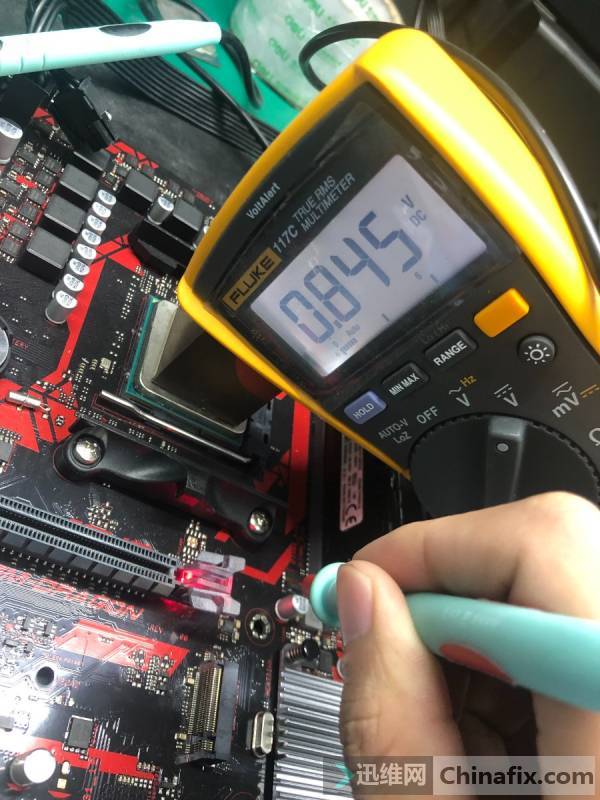

There is no CLK measured.

ASUS AM4 b450m motherboard cannot be powered on for repair

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 4.

No reset.

182;IMG_260

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 5.

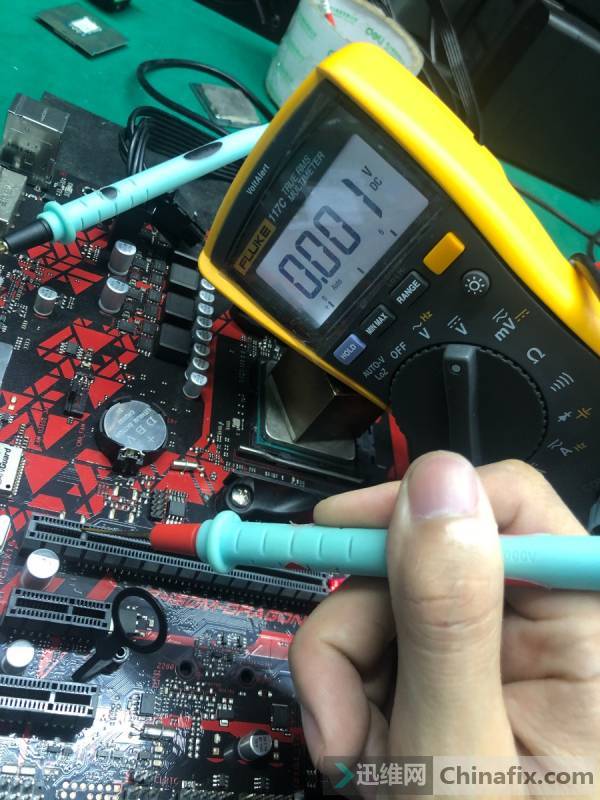

Measuring the PWR of CPU_Good signal.

202;IMG_261

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 6.

This PG is sent out by IO, and VCC is detected by measuring IO condition 5V, but there is no VCC.

235;IMG_262

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 7.

Change the resistance.

243;IMG_263

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 8.

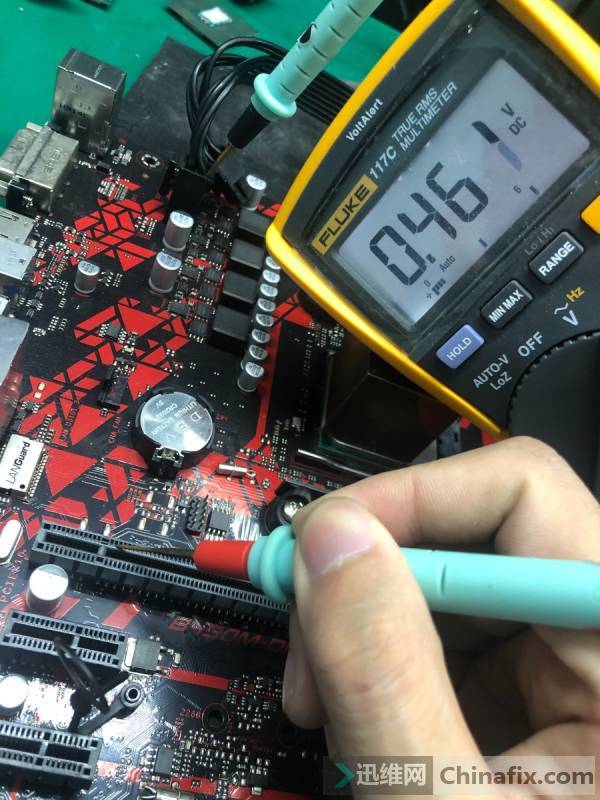

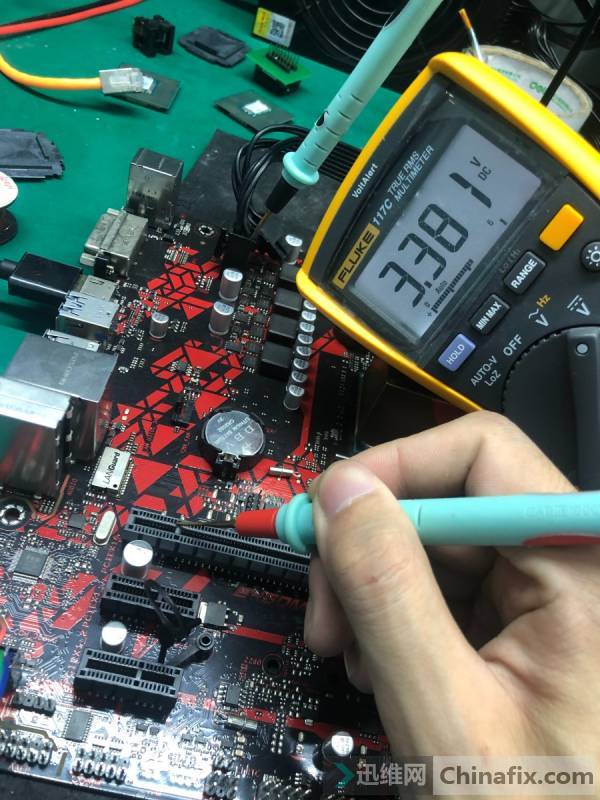

PG,CLK, reset.

261;IMG_264

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 9.

262;IMG_265

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 10.

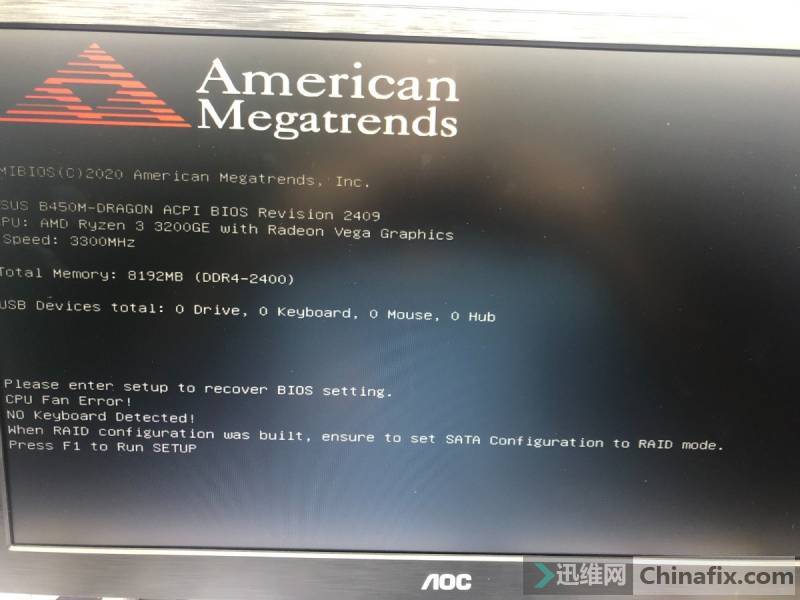

Power on,Normally booting up!

276;IMG_266

ASUS AM4 b450m motherboard cannot be powered on for repair Figure 11.
