Machine model: Apple MacBook Pro A1989

Main board version number: 820-00850-A

Malfunction: Notebook water damage can’t be turned on.

Maintenance process:

I received an Apple MacBook Pro laptop, and the failure description notebook water damage can’t be turned on.

Dismantle the machine immediately and conduct visual inspection.

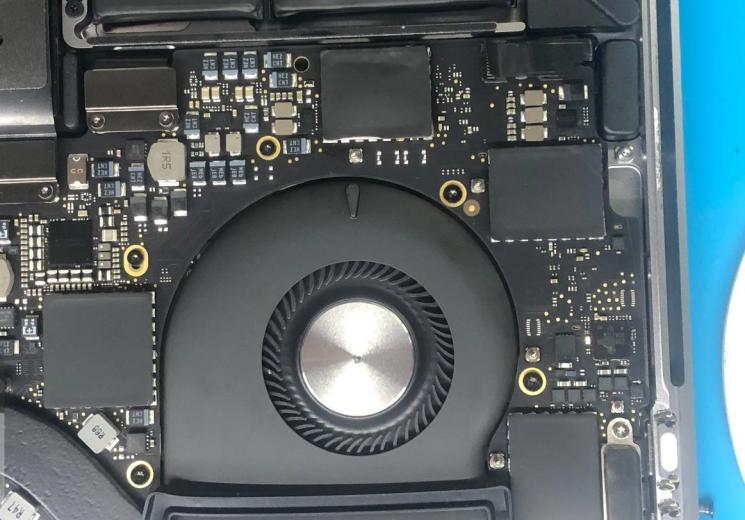

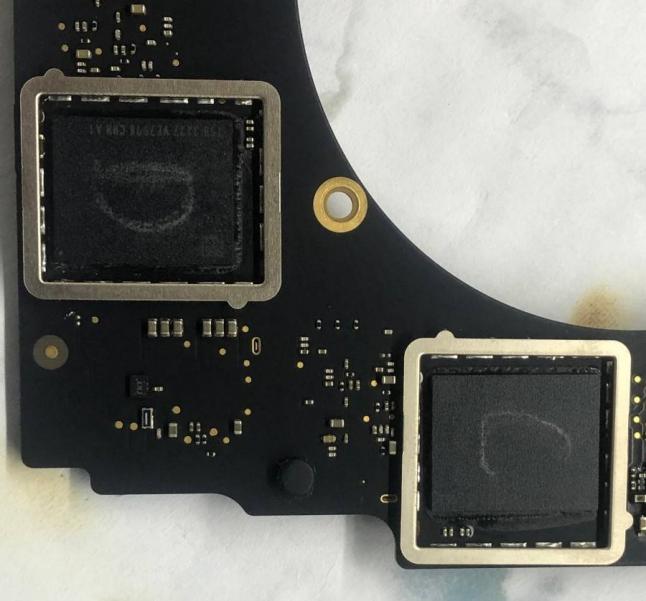

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 1.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 2.

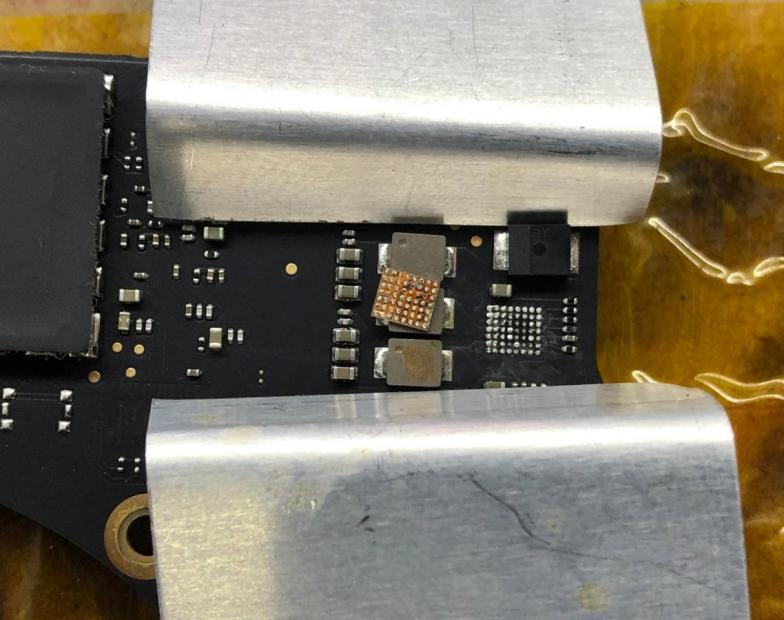

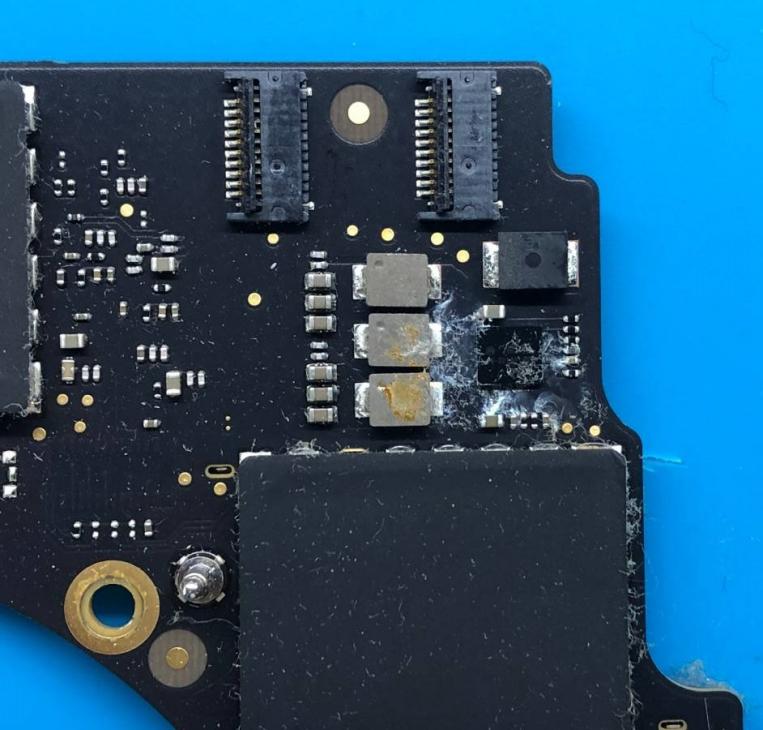

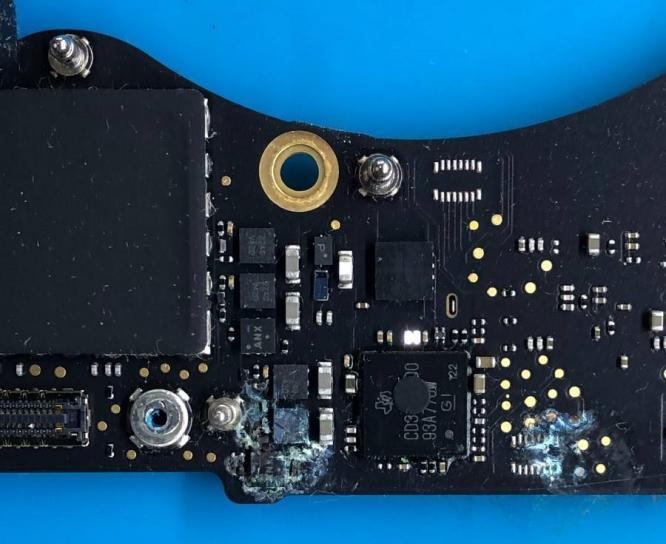

On visual inspection, it was found that Nand VCC IC part, 1 1.8V, 2 0.9V, CD3215, and the side parts all had serious water damage corrode Oxygenation.
After cleaning, it was found that Nand VCC, L9030 1.8V impedance to ground was 10 ohms, L9021 L9020 two 0.9V impedance to ground was only 40 ohms.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 3.
Remove U9000 Nand VCC IC, clean U9000 PAD, and test 1.8V L9030 again. The impedance to ground is only 10 ohms, 300 ohms is normal, and 0.9V 40 ohms is normal. It is basically determined that U9000 Nand VCC IC and water damage caused pin, common point,VCC and 1.8V short circuit, which caused Nand to burn out.
Cleaning CD3215 found that RB631save _ ta _ cc1 _ g and RB641save _ ta _ cc2 _ g had a common point PPBUS_G3H, and the 10K resistor corrode pulled up was serious, so the motherboard could boost voltage after replacement.

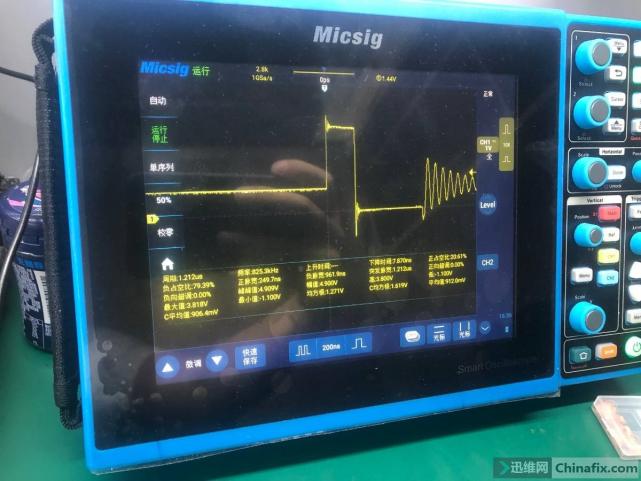

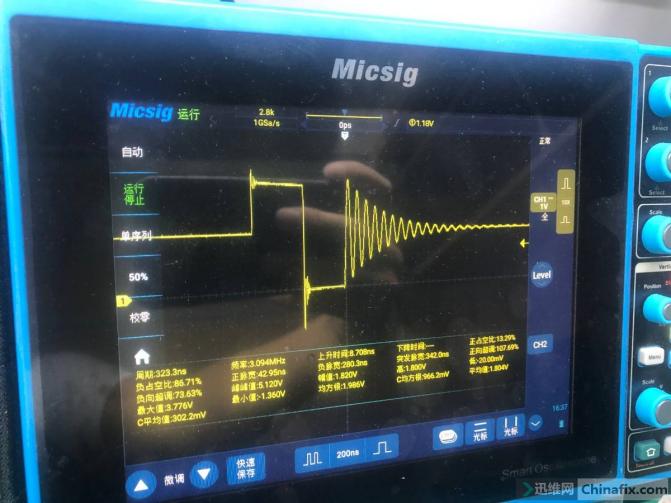

Replace Nand VCC IC U9000. The oscilloscope measures that the output of VCC is 1.8V, the waveform of 0.9V is normal and the output of VCC is very stable. However, brush T2, and the result reported an error of 6, which was basically determined to be Nand.

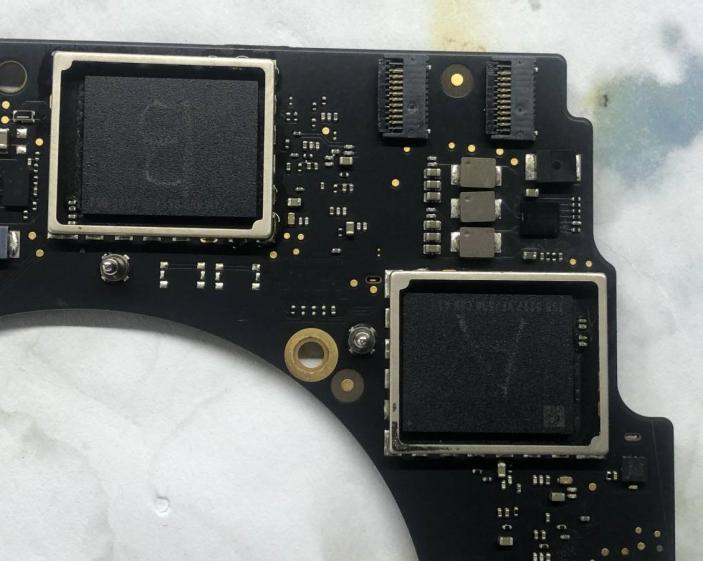

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 4.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 5.

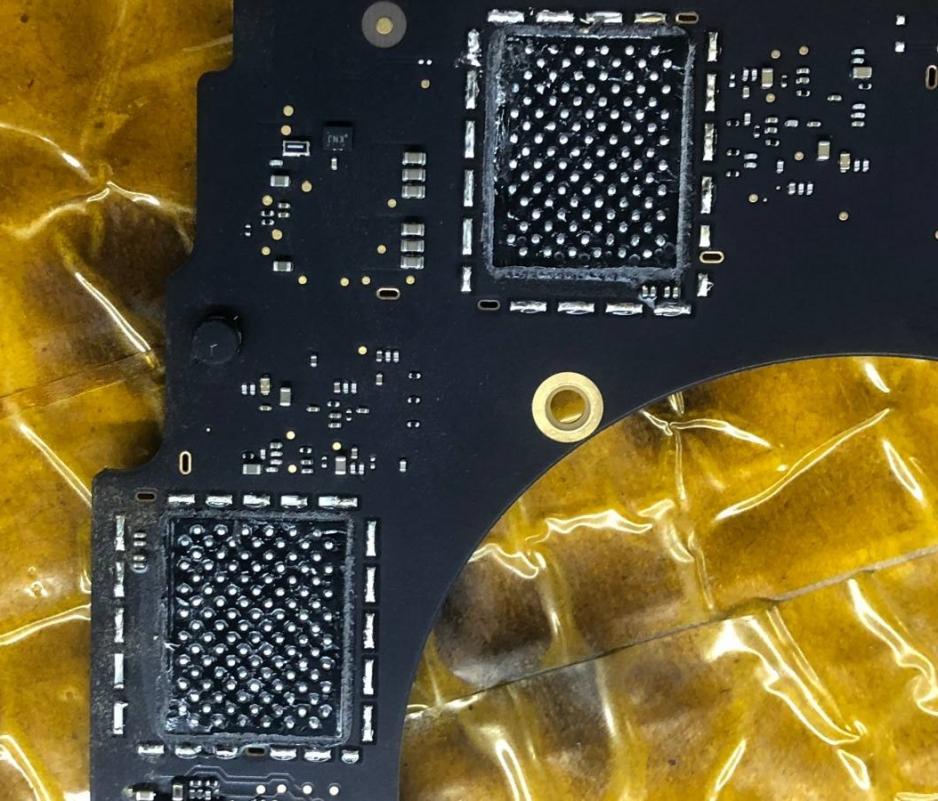

Remove the bad Nand.

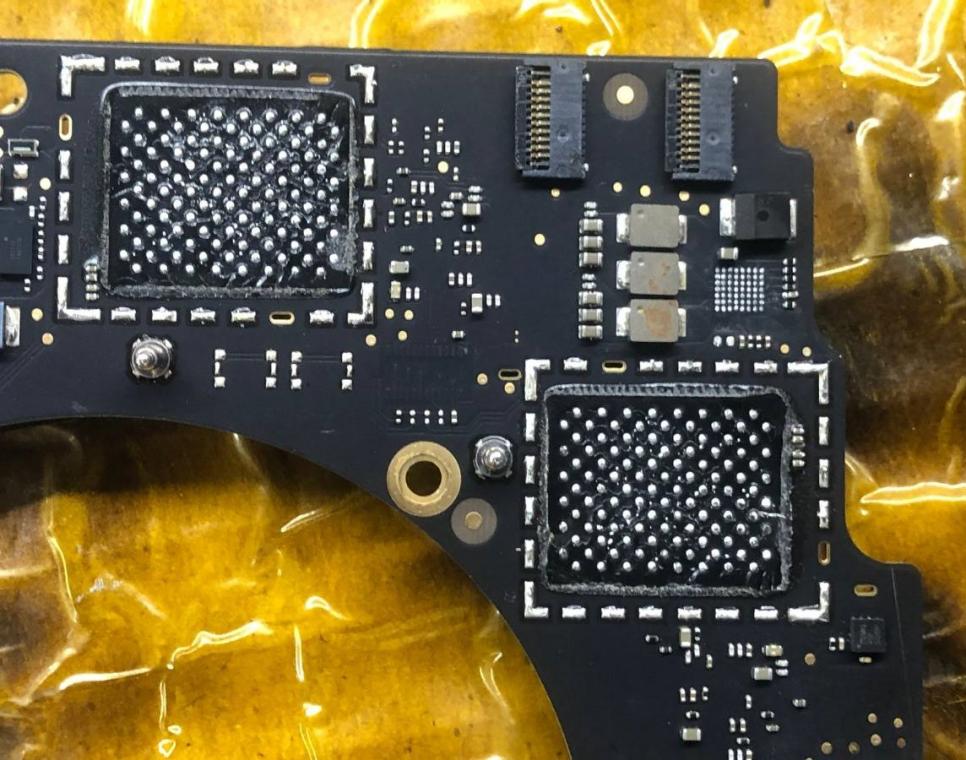

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 6.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 7.

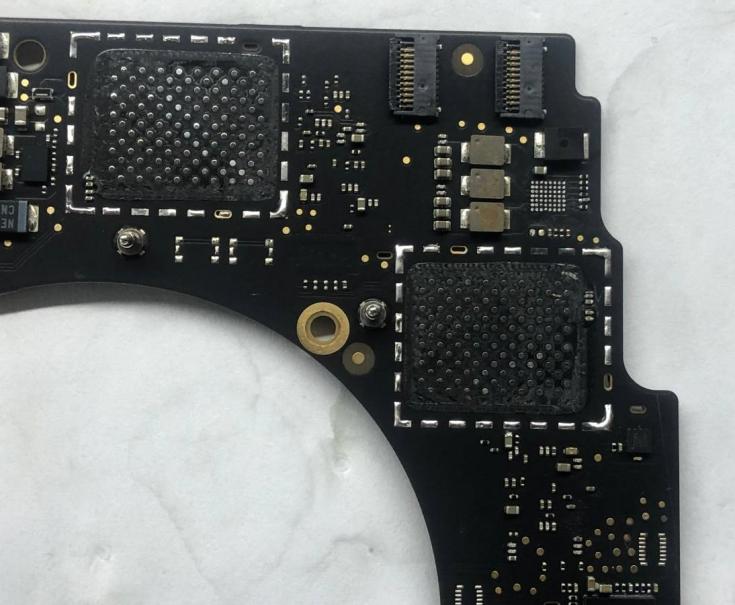

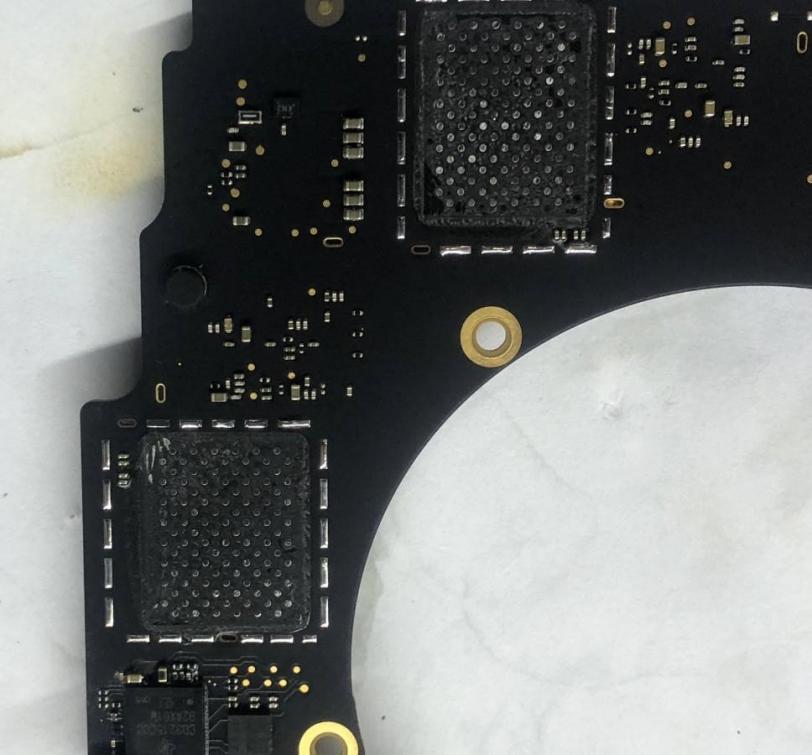

Get rid of Nand vinyl.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 8.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 9.
Install Nand.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 10.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 11.

Apple MacBook Pro A1989 notebook into water does not open the machine repair Figure 12.
Install the machine, brush the machine, and install the system. Troubleshooting, maintenance ends here.
