Apple MacBook Pro a1706 notebook screen dark “non common failing” maintenance

Remove the panel head and study. After measurement, it is found that the 5V test point on the logic board is in short circuit state As a result, the culprit was found on the back of the logical version; Take him out of 5V without short circuit, and put all the removed originals back into the machine. The screen has already lit up! This is the end of troubleshooting maintenance

Apple MacBook Pro a1706 notebook screen dark “non common failing” maintenance

[machine model] Apple MacBook Pro a1706 notebook

[fault phenomenon] dark screen of notebook

[maintenance process]

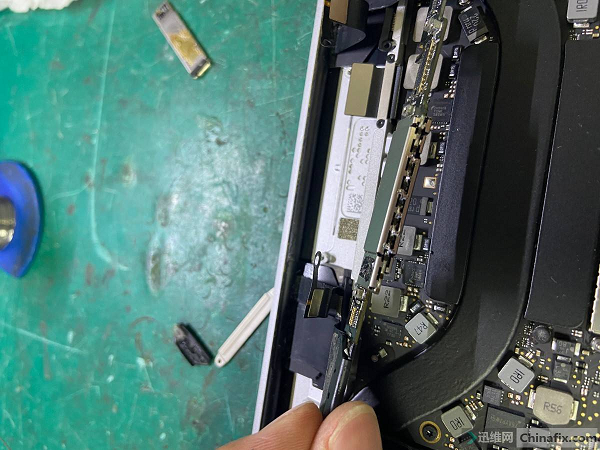

Received an apple MacBook Pro a1706 fault machine, the customer described the notebook no booting, received the hand found that the screen is dark, ask the customer if there is water damage!Remove the machine, open the back cover, there is no water damage!The screen of this machine has a common failing, the FPC of the light bar likes to be disconnected. It happens that there is a replaced screen was broken.screen head in the hand. When you install it, you can booting up, and it is more certain that the problem is the screen. The screen is too expensive for the customer to accept. Open for repair!Results the screen head was removed and found that FPC was good.

240;IMG_256
Apple MacBook Pro a1706 notebook screen dark “non common failing” maintenance Figure 1

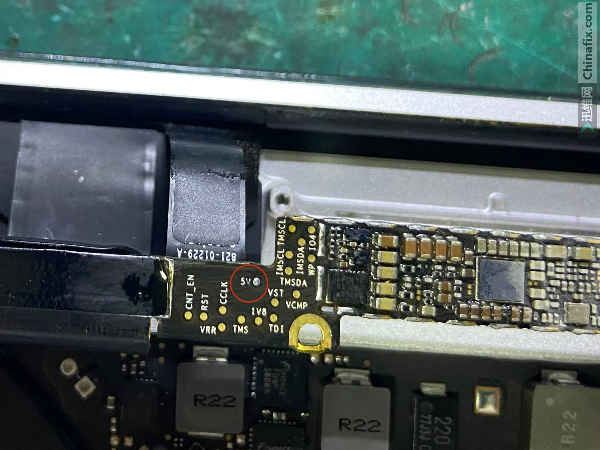

After removing the screen head, it was found that the 5V test point on the logic board was Short circuit.

315;IMG_257
Apple MacBook Pro a1706 notebook screen dark “non common failing” maintenance Figure 2

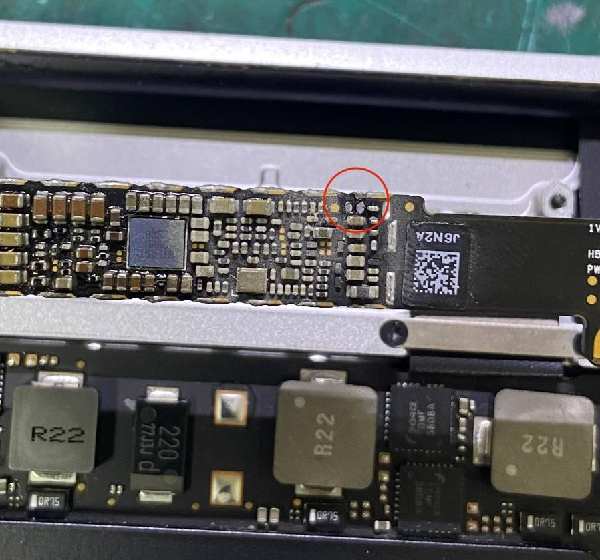

Here used stupid method, led boost chip and peripheral Capacitor are removed, found or Short circuit!Roast chicken. The culprit is found on the back of the logic version.

苹果MacBook Pro A1706笔记本屏暗“非通病”维修 图3
Apple MacBook Pro a1706 notebook screen dark “non common failing” maintenance Figure 3

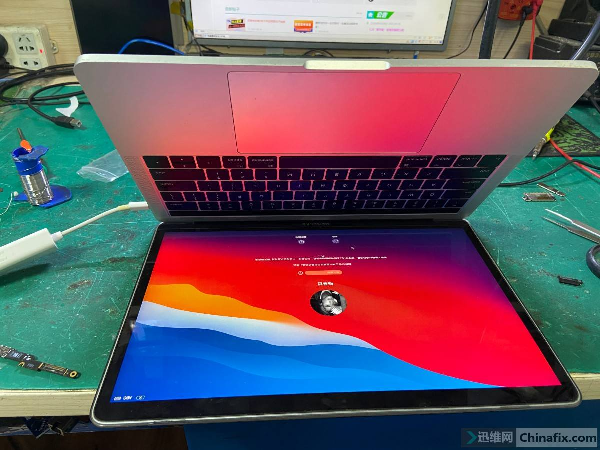

Cut him out, 5V no Short circuit, put the original removed back, install the machine, the screen has been lit up!This is the end of troubleshooting.

499;IMG_259
Apple MacBook Pro a1706 notebook screen dark “non common failing” maintenance Figure 4
