Apple MacBook a1708 notebook screen repair

Apple MacBook a1708 notebook dark screen, backlight FPC easy to break, is Apple's common failing, special Jump wire method.

Apple MacBook a1708 notebook screen repair

Machine model: Apple MacBook a1708
Fault phenomenon: notebook dark screen, 45 degree display, 90 degree display.
Maintenance process:
Believe this fault, I said, we all know what the problem is.Often repair Apple people know, this is an apple common failing, backlight FPC easy to break.

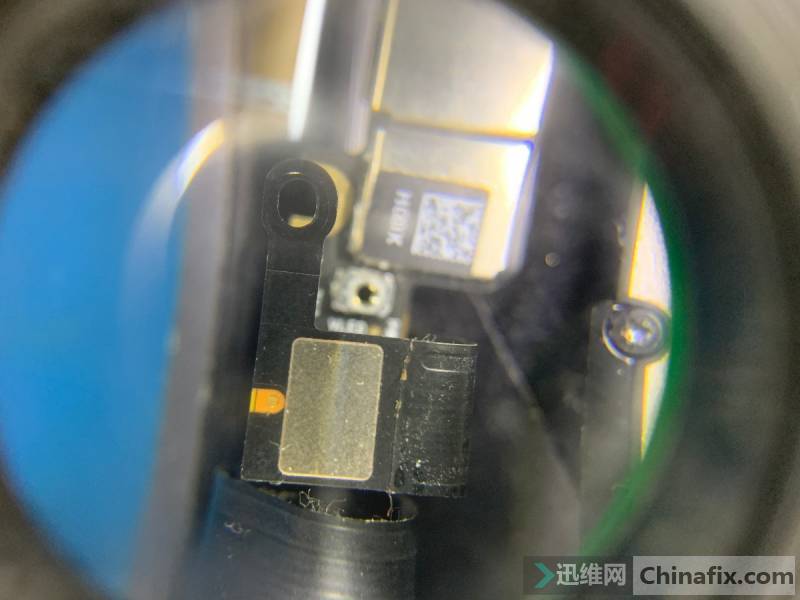

173;IMG_256

Apple MacBook A1708 notebook dark screen repair Figure 1.

But this FPC is directly connected to the backlight bar inside the screen. Normal thinking is to remove the screen, and then welding a new backlight FPC.Normal thinking is normal thinking. This time, we will not follow this normal thinking.
It’s very difficult to disassemble the screen of apple a1708. If you connect the first one of these machines, the screen is very expensive, and you dare not dismantle it.Therefore, today’s method,Jump wire, can avoid this risk.The operation pictures are as follows:

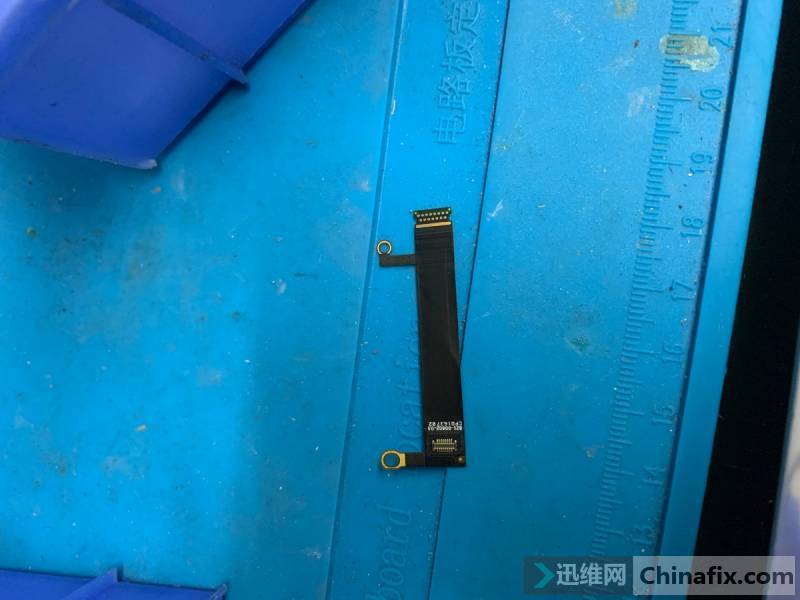

347;IMG_257
Apple MacBook A1708 notebook dark screen repair Figure 2.

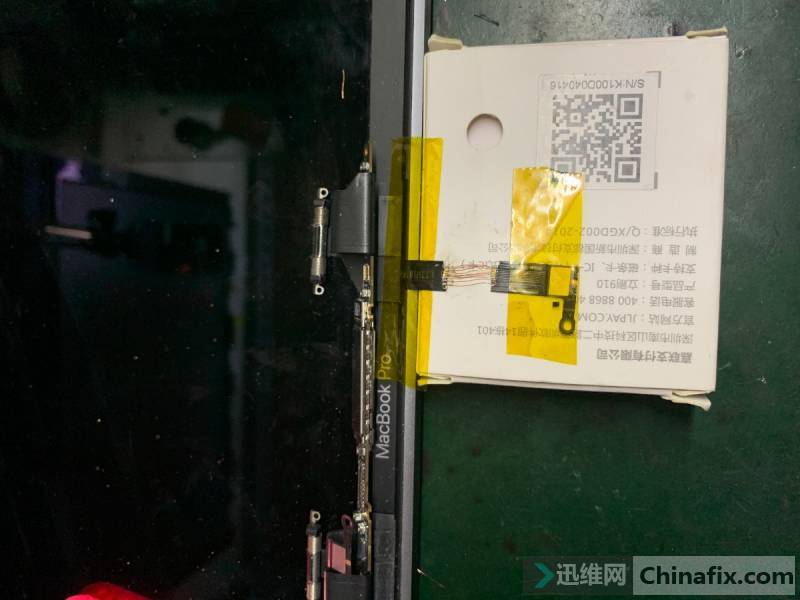

377;IMG_258
Apple MacBook A1708 notebook dark screen repair Figure 3.

408;IMG_259
Apple MacBook A1708 notebook dark screen repair Figure 4.

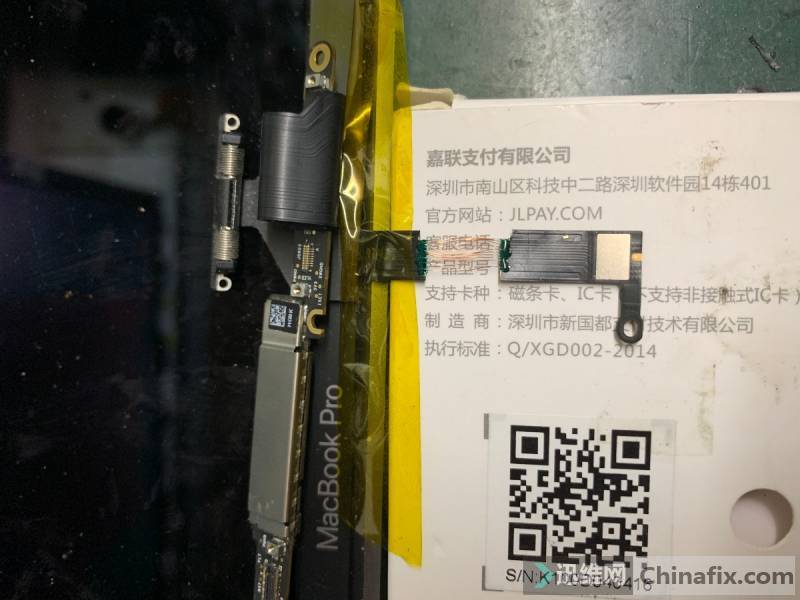

441;IMG_260
Apple MacBook A1708 notebook dark screen repair Figure 5.

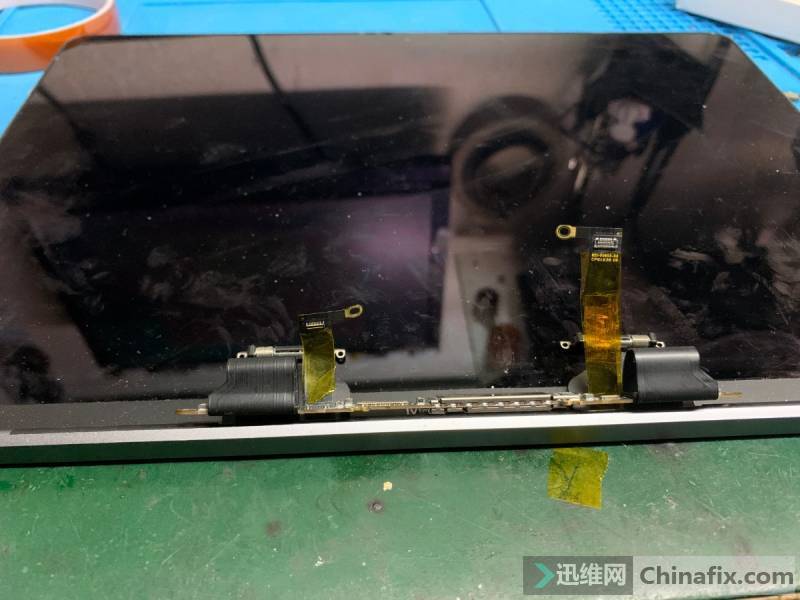

473;IMG_261
Apple MacBook A1708 notebook dark screen repair Figure 6.
Finally, FPC on the other side was prevented from breaking, and it was also reinforced.

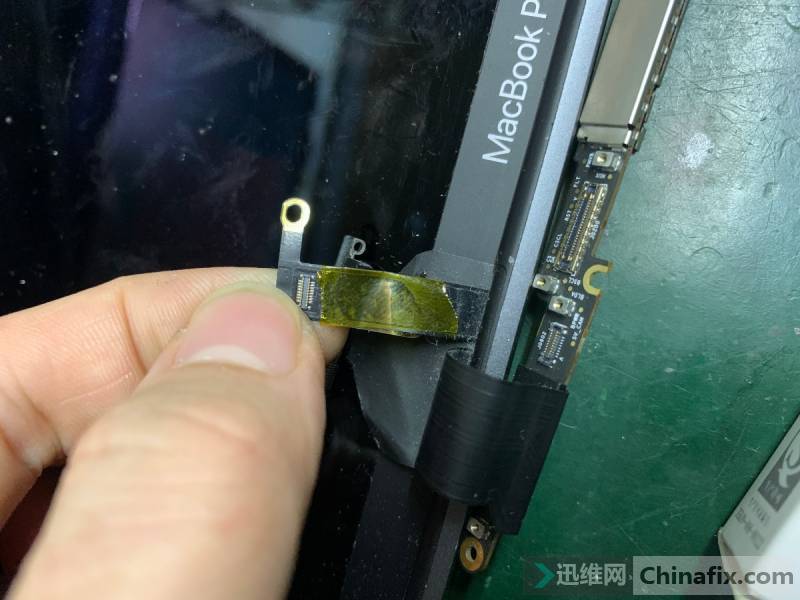

559;IMG_262
Apple MacBook A1708 notebook dark screen repair Figure 7.

This common failing machine is thus solved.
