ADATA DDR4 2133 8GB memory is damaged, replace 15 Ω drain resistor, and repair the fault.

Machine model: ADATA DDR4 2133 8GB

Fault phenomenon: the memory is broken

Maintenance process: the customer’s memory is broken, so it is replaced directly. The broken parts are still quite new. See the picture:

ADATA DDR4 2133 8GB memory repair

ADATA DDR4 2133 8GB memory repair Figure 1.

This kind of green bar has common failing, black 15 Ω,lighting cable buffer double drain resistance is very easy to break, this green bar 10 no booting, at least 6 of which are damaged by this small drain resistance.

ADATA DDR4 2133 8GB memory repair

ADATA DDR4 2133 8GB memory repair Figure 2.

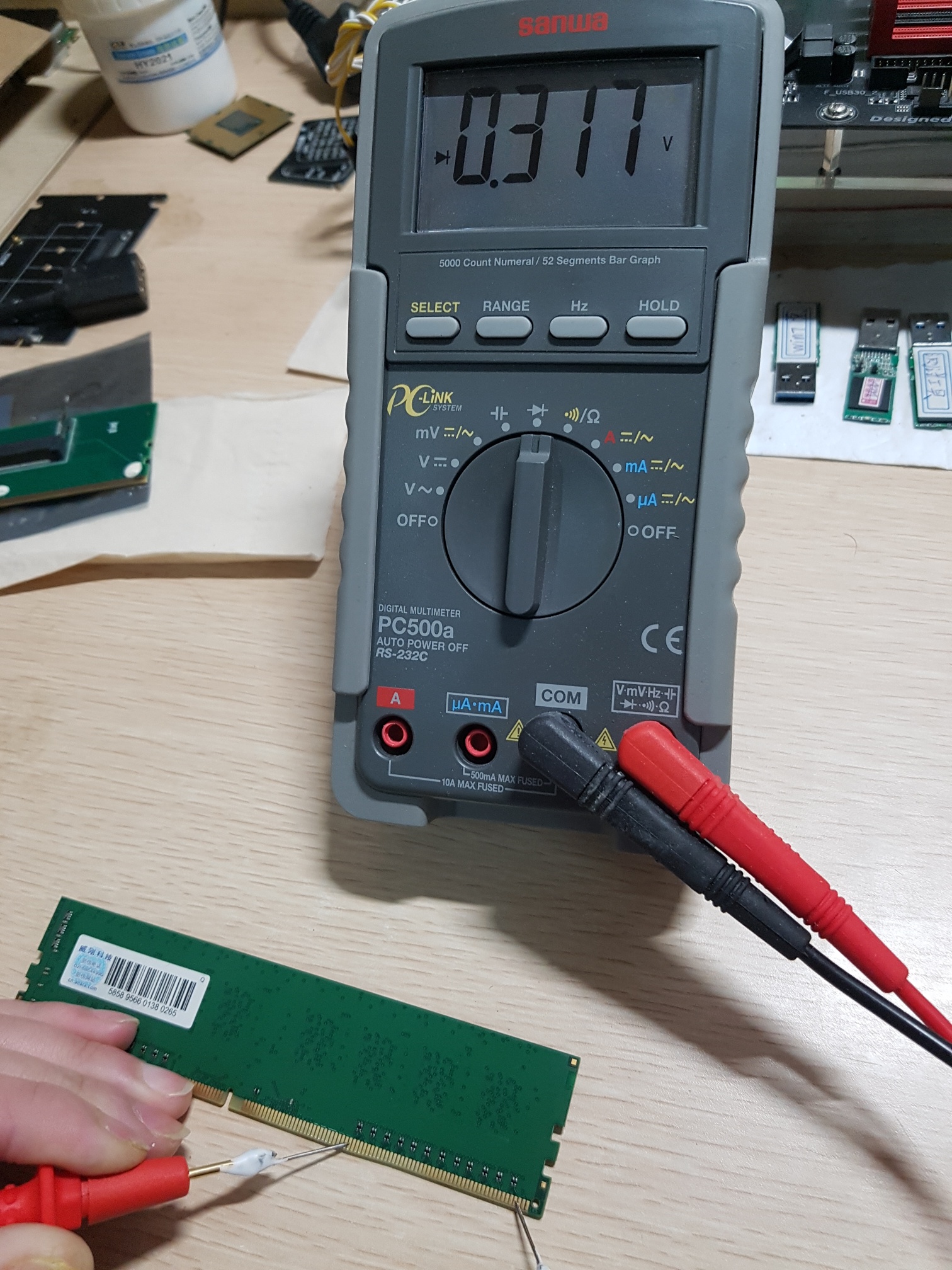

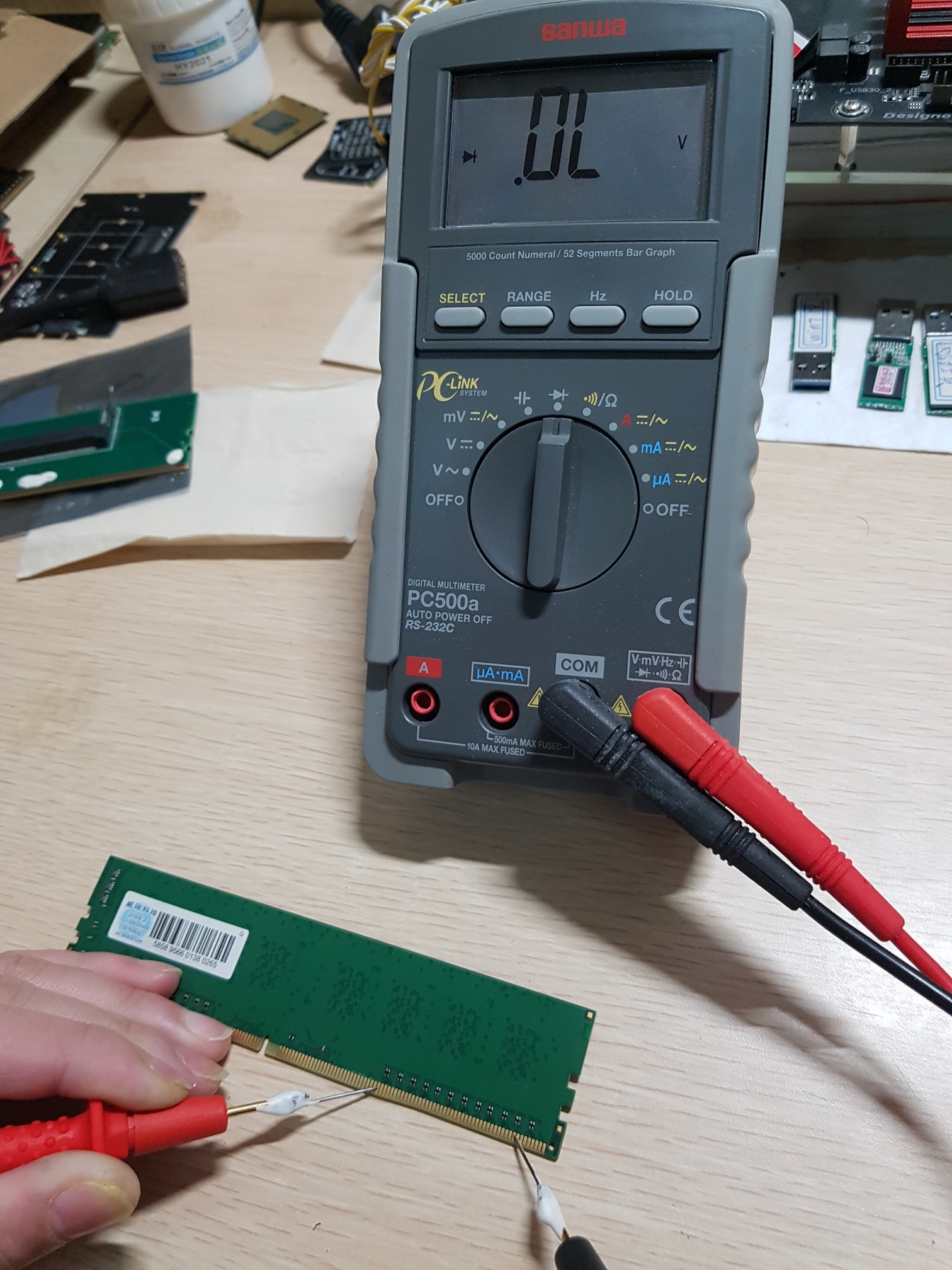

Normally, the ground diode is 317 or so, until the second buffer resistance OverLoad is hit. After measuring the resistance of another section, there are 310 diodes, and things become very simple.

ADATA DDR4 2133 8GB memory repair

ADATA DDR4 2133 8GB memory repair Figure 3.

Cause of damage:

313;IMG_259

ADATA DDR4 2133 8GB memory repair Figure 4.

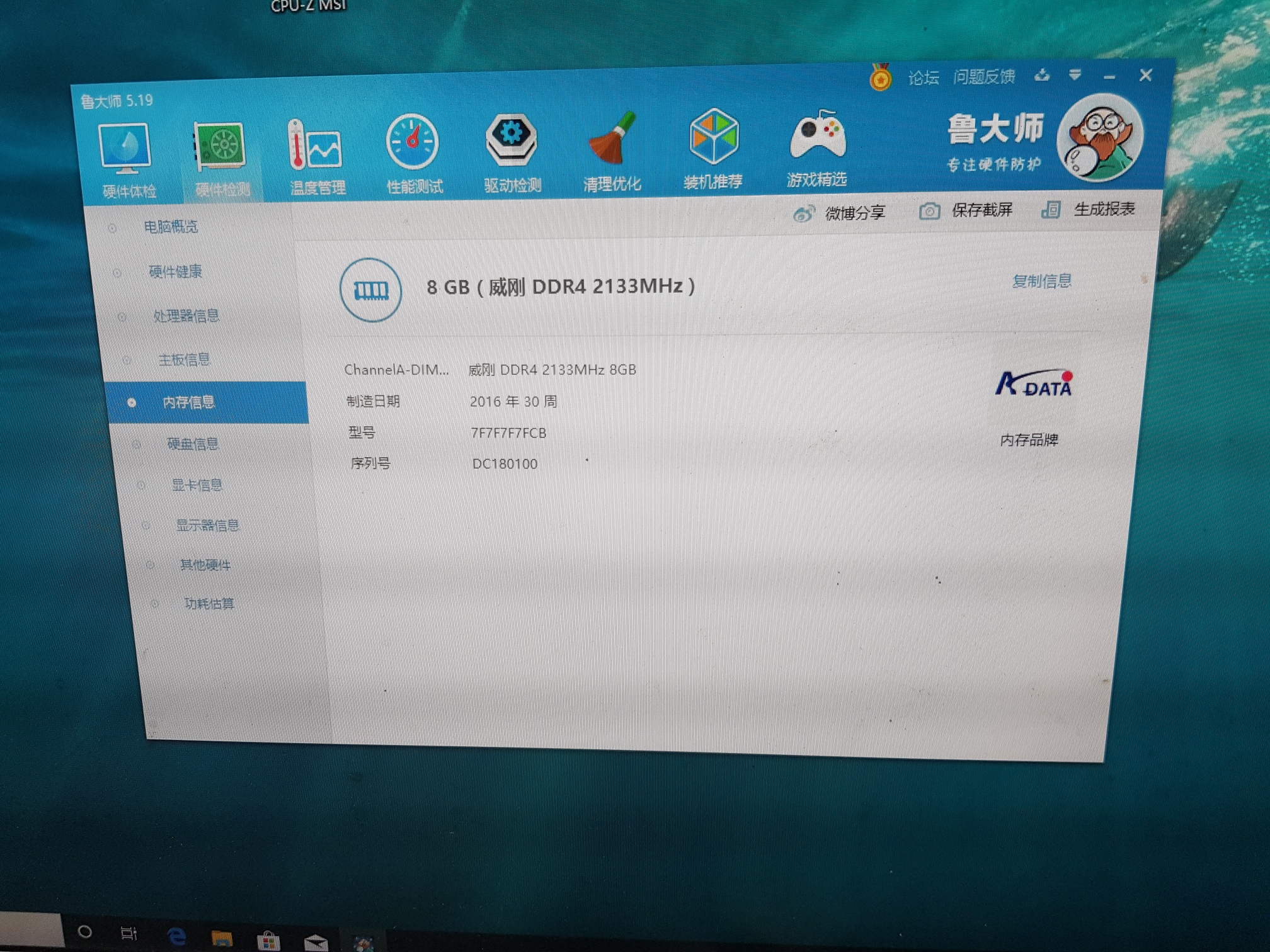

Replace the 15 Ω drain resistor, the machine lights up and the test is normal. The repair is over!

364;IMG_260

ADATA DDR4 2133 8GB memory repair Figure 5.
