Acer E5-571 notebook Won't Turn On, after testing, found that it was EC's problem, and it was repaired after replacement.

Acer E5-571 notebook cannot be started for repaired

Machine model: Acer E5-571

Acer E5-571 notebook cannot be started for repaired

Acer E5-571 notebook cannot be started for repaired Figure 1.

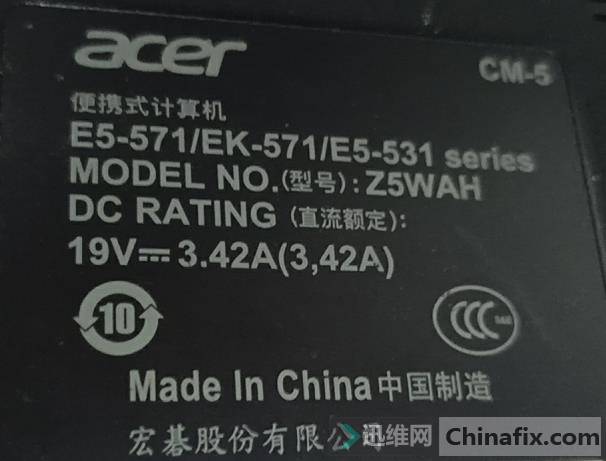

No.: A5WAH LA-B991P REV:1.0 2014-08-27

Acer E5-571 notebook cannot be started for repaired

Acer E5-571 notebook cannot be started for repaired Figure 2.

Malfunction: No power on no power on, no response when pressing Switch

Maintenance process: visually inspect the mainboard clean after disassembling the machine, insert VCC 0.004 and press Switch without response. The 5 pin VCC of Switch interface JPWR1 is only 0.67V.

Acer E5-571 notebook cannot be started for repaired

Acer E5-571 notebook cannot be started for repaired Figure 3.

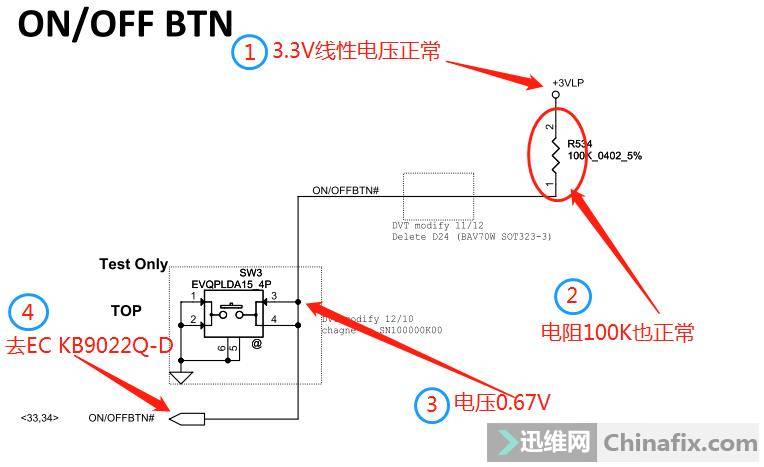

Its pull-up VCC is provided by 3V linearity,VCC is normal, R534 resistor 100K is normal, SW3 vacancy 3 and 4 pin, that is, ON/OFFBTN# has more than 600 ground value VCC.

339;IMG_259

Acer E5-571 notebook cannot be started for repaired Figure 4.

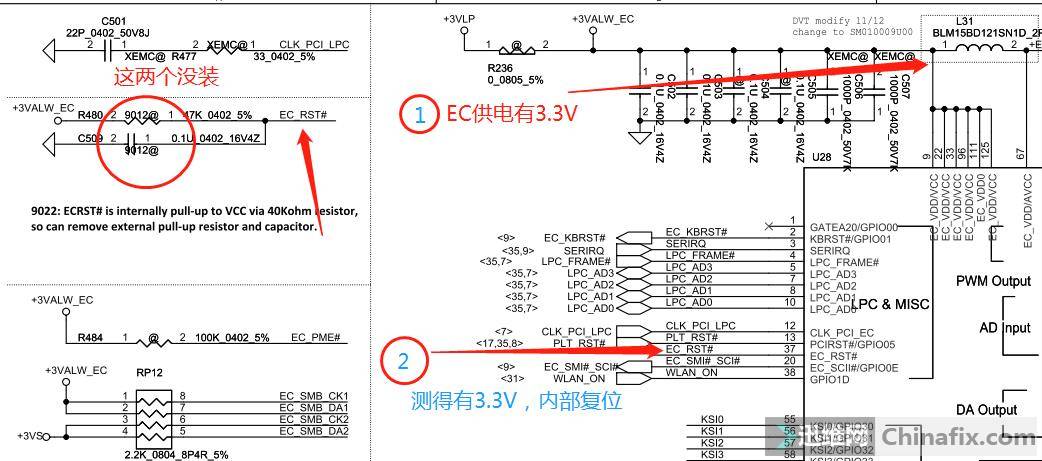

Check the condition of EC KB9022Q-D, L31 small Inductor VCC 3.3V is normal, EC37 pin EC_RST#pin also has 3.3V,CLK is internal.

428;IMG_260

Acer E5-571 notebook cannot be started for repaired Figure 5.

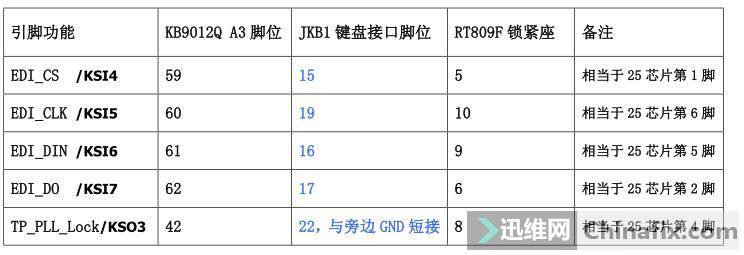

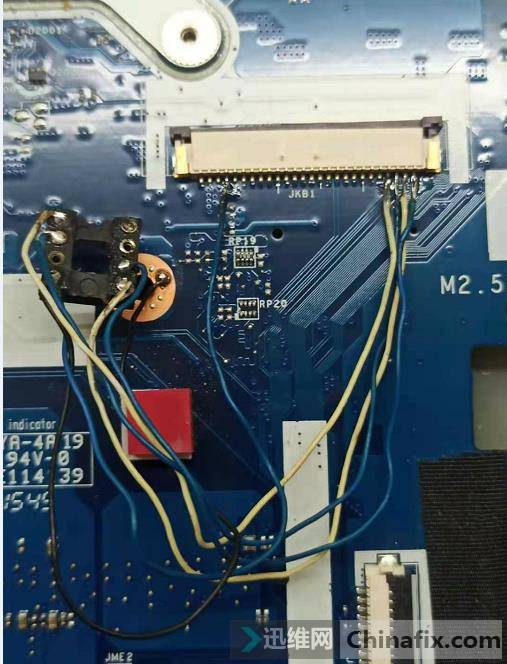

Only the program, the keyboard interface Jump wire.

468;IMG_261

Acer E5-571 notebook cannot be started for repaired Figure 6.

494;IMG_262

Acer E5-571 notebook cannot be started for repaired Figure 7.

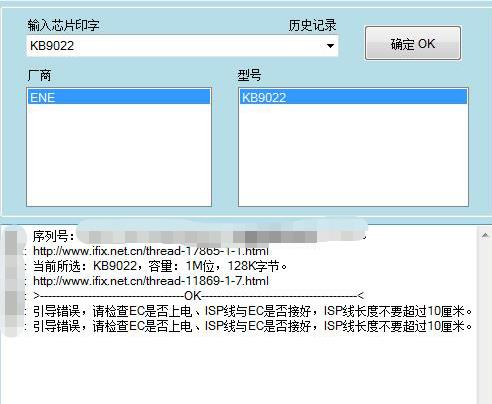

I can’t recognize the chip after connecting the programmer. It seems that there is something wrong with EC. EC is removed, and then 5 pin VCC of Switch interface JPWR1 is measured to be 3.3V.

571;IMG_263

Acer E5-571 notebook cannot be started for repaired Figure 8.

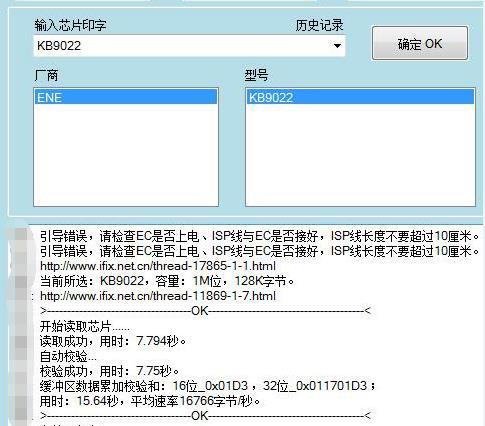

Change to EC, and then use the programmer to write the EC program downloaded from the forum.

624;IMG_264

Acer E5-571 notebook cannot be started for repaired Figure 9.

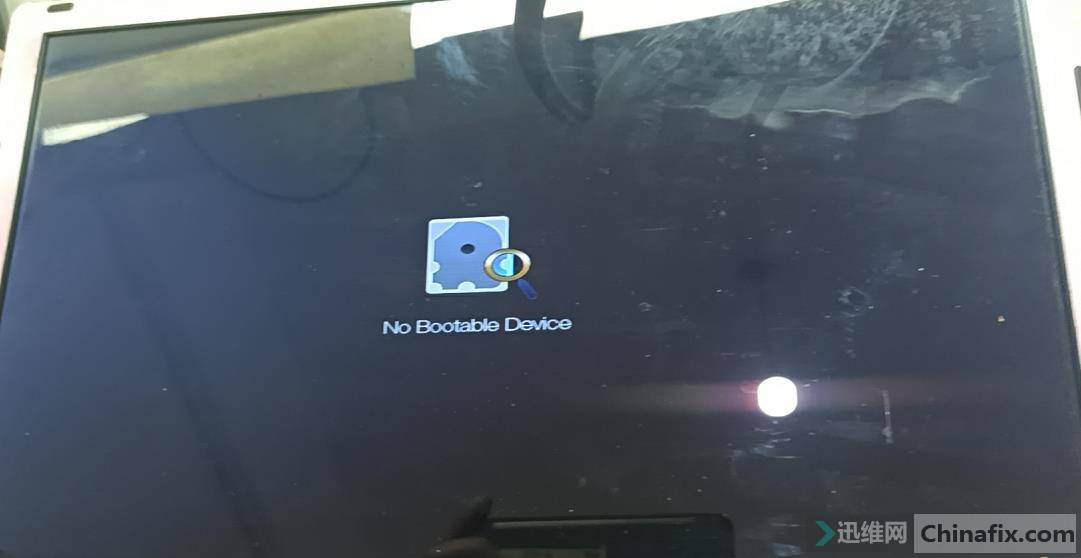

It’s turned on normally, and the maintenance is over.
