Redmi G game didn’t start, and the fault was that it didn’t start. After maintenance, it was found that it was caused by problems such as broken bridge, broken screen and graphics card.

[Fault model] bmg2104 Redmi G game book

[Fault phenomenon] No boot.

[Maintenance process] I received a machine sent for repair by my peers, the model of which is Redmi G Game Book, and the fault is that it does not turn on.

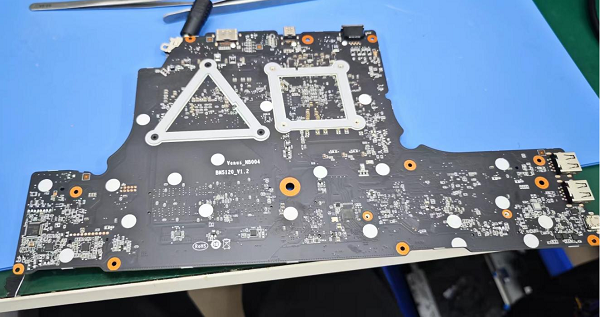

According to the description of his peers, he did not unplug the battery when changing the screen, but directly removed the screen for replacement. As a result, he found that it was not turned on after changing, so he sent it to us for rescue. After getting the machine, he directly disassembled it and took it out to check that the board number was BM5120_V1.2

Redmi G game is not turned on. Figure 1

Redmi G game is not turned on. Figure 2

Redmi G game is not turned on. Figure 3

This motherboard is not.blueprintYes, but it is estimated that the bridge is broken when the screen is changed. We will know by measuring it. First, the power supply resistance of the screen accessories is basically normal, and then the resistance on the bridge is measured to supply power, and it is found that the resistance in the upper left corner is 5.

One of the two inductors in the lower right corner is powered by 1.8v, and the other is powered by 5V, and the resistance is normal. The resistance of the inductor powered by 3.3v is also normal on the left side of the main board. Since there is an inductor to the bridge with a resistance of 5, it must be basically short-circuited. When the bridge is found to be hot with a 1v burning machine, the bridge is basically locked, and the new bridge is directly ordered to be replaced. This board uses the 11 th generation I5, and the bridge is also a 500 series, so it is more expensive.

Redmi G game is not turned on. Figure 4

After buying a new bridge and replacing it, the measured resistance on the bridge is normal, and the resistance at the place where it was short-circuited before is back to normal. Then, just power on the bridge directly to see the situation. When power on, it is found that the current can be powered on normally, and the uppercase and lowercase keys can be switched later, which means that it can be turned on, but there is no backlight and no display. After looking at the screen, it was disassembled but not replaced at home. After checking the screen interface, it is found that there are traces of water on the screen, and the screen should be sent again without replacing it at home, inferring that the screen should be

Redmi G game is not turned on. Figure 5

When I bought a new screen and replaced it, I found that it still didn’t display. I measured the voltage near the screen and found that there was a backlight of 20v, but the screen was not powered by 3.3v, and it was not turned on. Is it difficult to break the bridge? Because there are no drawings, the screen feet are not aligned, but there is no doubt about the bridge at the first time when it can be turned on, and the resistance of the pentagon turned on by the screen power supply is also normal. Try brushing a BIOS first. After all, you have to brush the BIOS when changing the bridge.

Redmi G game is not turned on. Figure 6

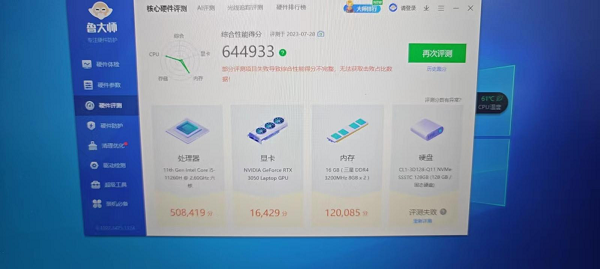

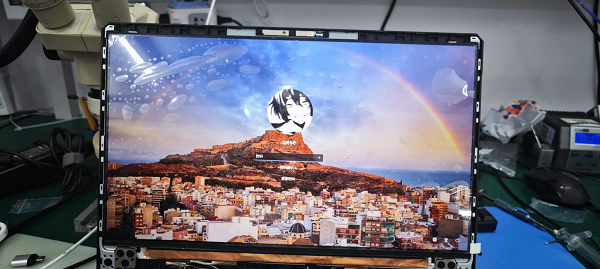

After brushing the BIOS, it can be displayed. After entering the system, the function is normal. When Master Lu ran away, he found that the running score of the graphics card was low. After changing the system disk and driver, the fault remained. He suspected that there was a problem with the graphics card, so he needed to fix the chip and communicate with the customer for maintenance. Because it took a long time to change the bridge and screen, the peers should be in a hurry to make a job, so they did not agree to continue the maintenance. After testing for one day, the function was normal and the baking machine was stable, so we installed the machine and sent it away.

Redmi G game is not turned on. Figure 7

Redmi G game is not turned on. Figure 8

[Maintenance result] The mainboard was installed, and the startup test was successfully lit. The recording, camera, sound and WiFi of the system test were normal, and the stress test of the baking machine was normal for half an hour. The maintenance was over.
